  11. Straight Blade Receptacle, 14-20R, 20 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

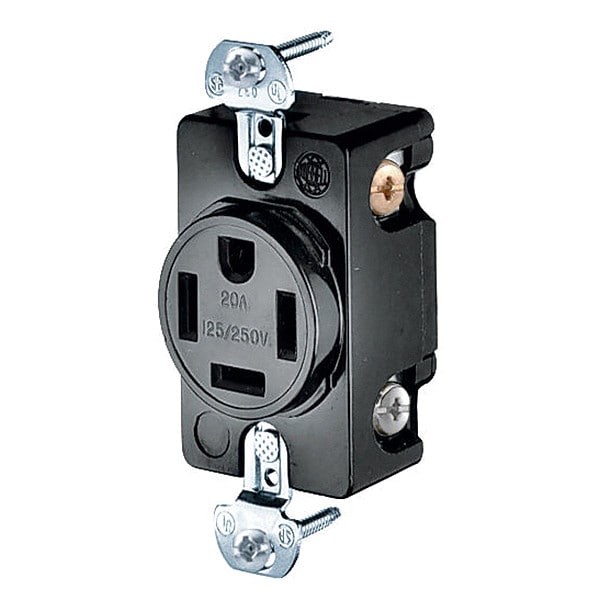

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 14-20R, 20 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded HBL8410 - main

Straight Blade Receptacle, 14-20R, 20 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # HBL8410

  • Zoro # G2133126

product price: $44.59
/ea

Key Features

Receptacle Type
Single
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8410
Zoro #
G2133126
UPC #
783585015705
Country of Origin
United States

Dimensions

Width
1.5 in
Height
1.24 in
Face Plate Width
1.5 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Face Diameter
1.4 in
Face Plate Height
2.4 in
Wire Size
#14 AWG to #10 AWG
Dimensions
2.44 in x 1.5 in x 1.24 in
Length
2.44 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Boot Code
A
Material
Nylon
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
14-20R
Power Indicator
No
HP
2 hp
Number of Gangs
1
Sub-Category
Single Receptacles
Corrosion Resistant
No
Surge Suppression
No
Application Environment
Industrial
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Single
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Single
Voltage
250VAC
Type
Receptacle
UL 94 Flammability Rating
V-2
Market
Industrial
AFCI
No
Housing Material
Nylon
Horsepower Rating
2 hp
GFCI
No
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Surge Protection
No
Shrouded
No
Connection Orientation
Straight
Includes
Mounting Hardware
For Location
Indoor
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Polarized
Yes
Grade
Federal Specification
Device Color
Black
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
20A, 125/250V
Receptacle Grade
Heavy Duty Spec Grade
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
3 Pole, 4 Wire Grounding
Certification
UL Listed, File E2186, Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Face Shape
Traditional
Power Contacts Material
.037" (.9) Brass - Ni Plated
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
IP Suitability
IP20
Face Style
Finder Groove
Current Interrupting
Certified for current interrupting at full rated current
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Flammability
UL 94 V-2, UL 94 V0.
Standard
NEMA
Ground Screw Material
#8-32 Silicon Bronze (Green)
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
2(1)
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Mounting Strap Material
.062" (1.5) Plated Steel
Base Material
Reinforced PET
Receptacle Style
Single
Wattage
5000 W
Nema Rating
14-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
2 (1)
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Extra Heavy Duty Hospital Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 14-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706, Voltage Rating 125/250V AC
