  11. Straight Blade Receptacle, 15-30R, 30 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

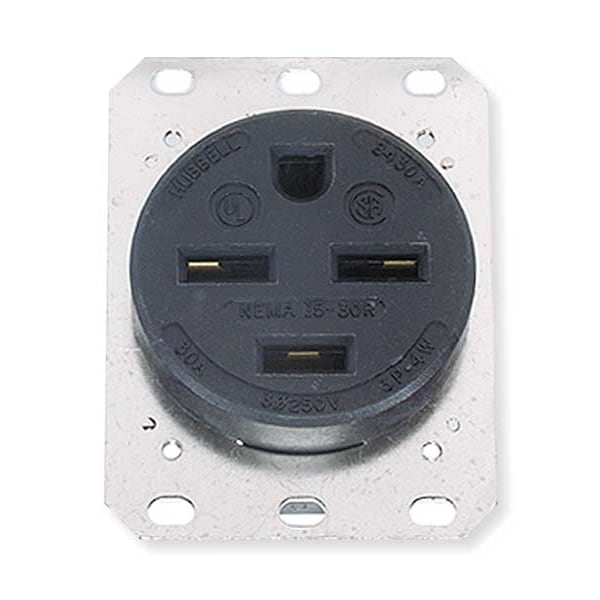

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 15-30R, 30 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded HBL8430A - main

Straight Blade Receptacle, 15-30R, 30 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # HBL8430A

  • Zoro # G3054265

product price: $90.45
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8430A
Zoro #
G3054265
UPC #
783585015149
Country of Origin
United States

Dimensions

Width
1.81 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
2.4 in
Minimum Wire Size
12 AWG
Face Diameter
2.4 in
Mount Hole Center-to-Center Width
1.8 in
Maximum Wire Size
6 AWG
Display Size
Standard Sized Product
Wire Size
#12 AWG to #6 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
C22.2, CSA, No. 42, UL Listed
Resistance Properties
WR Rating
Flange Type
Non-Flanged
Power Indicator
No
Voltage
250VAC
Outlet Type - Plugs and Receptacles
Single
Sub-Category
Single Receptacles
Mounting Type
Flush
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
15-30R
Tamper Resistant
No
Corrosion Resistant
No
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
HP
3 hp
Material
Thermoplastic Polyester
Weather Resistant - Plugs and Receptacles
No
Boot Code
D
Weather Resistant
No
Outlet Type
Single
NEMA Configuration
15-30
Application Environment
Industrial
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Shrouded
No
Cover Type
No Cover
For Location
Indoor
UL 94 Flammability Rating
V-0
Housing Material
Composite, Thermoplastic
AFCI
No
Horsepower Rating
3 hp
Grade
Federal Specification
Market
Industrial
Polarized
Yes
GFCI
No
Connection Orientation
Straight
Surge Protection
No
Poles and Wires
3 Pole, 4 Wire Grounding
Rating
30A, 3ph 250V
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Current Interrupting
Certified for current interrupting at full rated current
Mounting Screw Material
Steel-Zinc Plated
Face Style
Finder Groove
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Top Material
Glass Reinforced PET
Face Shape
Traditional
Flammability
UL 94 V0.
Base Material
Glass Reinforced PET
Receptacle Style
Single
Horsepower
3
Standard
NEMA
Mounting Strap Material
.062" (1.5) Plated Steel
Ground Screw Material
3/8" Allen Head, Plated Steel
Power Contacts Material
.040" (1.0) Brass
Box Terminals Material
Copper
IP Suitability
IP20
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Black
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screw Material
3/8" Allen Head, Plated Steel
Receptacle Grade
Heavy Duty Spec Grade
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
Certified to CSA NEMA® WD-6 Compliant UL Listed File E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
7500 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Heavy Duty
Nema Rating
15-30R
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
3

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 15-30R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
