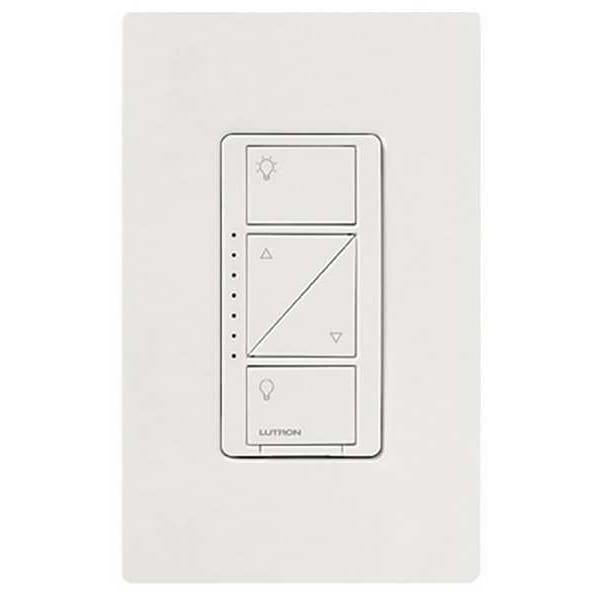

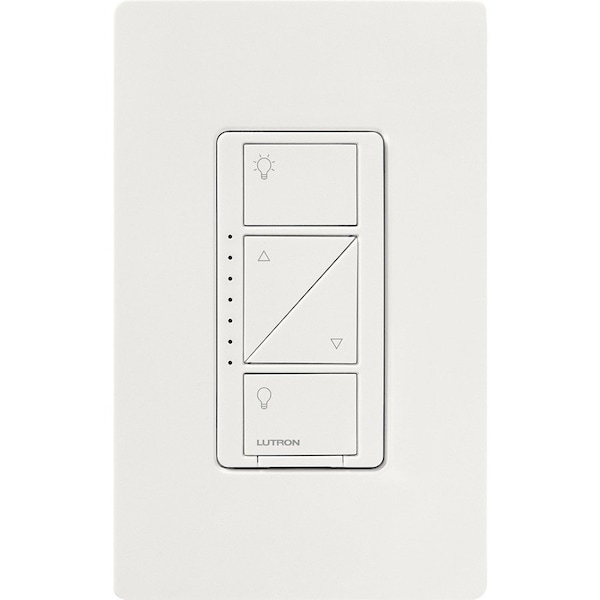

Lght Dmr, Switch Only, 120V AC, Wht

Mfr # PD-10NXD-WH
Zoro # G503076134

132.00

Free Shipping & Returns

Key Features

Item - Motion Sensing and Dimming

Lighting Dimmer

Switch Style - Motion Sensing and Dimming

Front Accessible Service Switch (FASS)

Includes

Front Accessible Service Switch

Communication Method - Motion Sensing and Dimming

Wireless RF

Switch Type - Motion Sensing and Dimming

3-Way, Multilocation

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PD-10NXD-WH
Zoro #: G503076134
UPC #: -
Country of Origin: China

Dimensions

Overall Height: 4.69 in
Overall Width: 2.94 in
Overall Depth: 0.31 in

Details

Item - Motion Sensing and Dimming: Lighting Dimmer
Switch Style - Motion Sensing and Dimming: Front Accessible Service Switch (FASS)
Includes: Front Accessible Service Switch
Communication Method - Motion Sensing and Dimming: Wireless RF
Switch Type - Motion Sensing and Dimming: 3-Way, Multilocation
Number of Gangs: 1
Operating Voltage - Motion Sensing and Dimming: 120V AC
Max. Capacity @ 120VAC: 1,000 VA (MLV), 1,000 W (Halogen, Incandescent), 250 W (LED)
Color - Motion Sensing and Dimming: White
Installation Location - Motion Sensor: Wall
Sensing Technology: Switch Only
Number of Buttons: 3
Lighting Technology: Halogen, Incandescent, LED
Description/Special Features: Lutron Claro Seamless Wall Plates Snap on with No Visible Means of Attachment
Color: White
Wall Plate: Not Included
Voltage: 120V AC
Communication Method: Wireless
Use With - Motion Sensing and Dimming: GRX-TVI Interfaces, Lutron Hi-Lume A-Series LTE 2-Wire LED Driver, PHPM Interfaces
Standards: Complies with the limits for a Class B Digital Device, Pursuant to Part 15 of the FCC Rules Industry Canada Certified, cULus Listed, FCC Approved, IFTEL Certified, NEMA 410, NOM
Item: Lighting Dimmer
Rated Frequency: 50/60 Hz
Installation Location: Wall
Load Rating @ 120V AC: 1,000VA (MLV); 1,000W (Halogen, Incandescent); 250W (LED)
Neutral Required: Yes
Includes Wall Plate: Wall Plate Not Included
Compatible with Series: Caseta
Maximum Operating Temperature: 104 Degrees F
Series: Caseta
Minimum Operating Temperature: 32 Degrees F
Nightlight: Yes
Includes Dimming Switch: Dimming Switch Included
Illuminated: Yes
Dimming Type: Full Continuous Dimming
Application Type: Single-Pole, 3-way, or Multi-Location w/Pico(s)
Bulb Compatibility: Dimmable CFLs; Dimmable LEDs; Incandescents; Halogens
Maximum Wattage: 250W for Dimmable CFL/LED bulbs; 1000W for Incandescents/Halogens
Coordinating Wallplates: Single Gang Wallplate CW-1-XX (Gloss); 2-Gang Wallplate CW-2-XX (Gloss)
Operating Voltage: 120V AC

Description

Lighting Dimmer, Number of Buttons 3, Sensor Operation Not Applicable, Compatible with Series Caseta, Lighting Technology Halogen, Incandescent, LED, Operating Voltage 120V AC, Sensing Technology Switch Only, Load Rating @ 120V AC 1,000VA (MLV); 1,000W (Halogen, Incandescent); 250W (LED), Communication Method Wireless, Maximum Coverage Area Not Applicable, Neutral Required Yes, Color White, Nightlight Yes, Dimming Type Full Continuous Dimming, Includes Dimming Switch Dimming Switch Included
