  6. Straight Blade Receptacle, 15-50R, 50 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

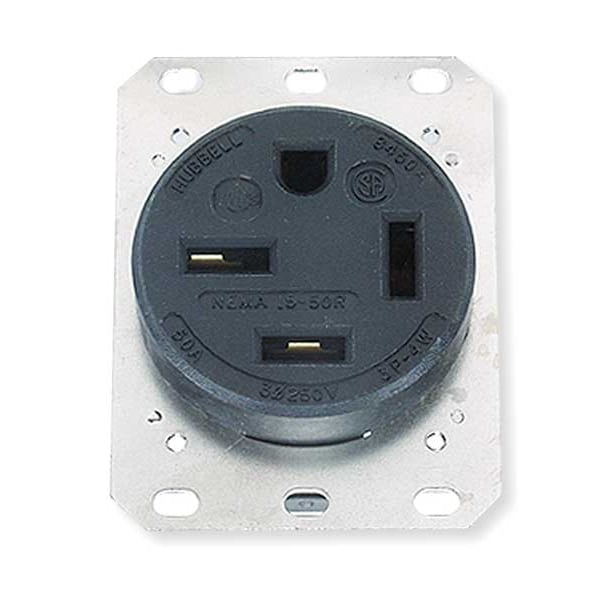

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 15-50R, 50 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded HBL8450A - main

Straight Blade Receptacle, 15-50R, 50 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # HBL8450A

  • Zoro # G2196433

product price:  $117.25
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL8450A
Zoro #
G2196433
UPC #
783585015156
Country of Origin
United States

Dimensions

Width
1.81 in
Overall Depth
2.4 in
Maximum Wire Size
6 AWG
Face Diameter
2.4 in
Mount Hole Center-to-Center Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Display Size
Standard Sized Product
Wire Size
#12 AWG to #6 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
15-50R
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL E2186
Resistance Properties
WR Rating
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
HP
7 1/2 hp
Weather Resistant
No
Material
Thermoplastic Polyester
Sub-Category
Single Receptacles
Power Indicator
No
Mounting Type
Flush
Tamper Resistant
No
Corrosion Resistant
No
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
250VAC
Outlet Type
Single
NEMA Receptacle Configuration - Plugs and Receptacles
15-50R
Boot Code
D
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Industrial
Outlet Type - Plugs and Receptacles
Single
AFCI
No
UL 94 Flammability Rating
V-0
Market
Industrial
Contact Material
Brass
Polarized
Yes
Grade
Federal Specification
GFCI
No
Housing Material
Composite, Thermoplastic
Surge Protection
No
For Location
Indoor
Connection Orientation
Straight
Horsepower Rating
7 1/2 hp
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Includes
Wall Plate or Weatherproof Cover
Cover Type
No Cover
Shrouded
No
Base Material
Glass Reinforced PET
Power Contacts Material
.040" (1.0) Brass
Top Material
Glass Reinforced PET
Receptacle Style
Single
Box Terminals Material
Copper
Receptacle Grade
Heavy Duty Spec Grade
Device Color
Black
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap Material
.062" (1.5) Plated Steel
IP Suitability
IP20
Terminal Screw Material
3/8" Allen Head, Plated Steel
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
3 Pole, 4 Wire Grounding
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
7.5
Ground Screw Material
3/8" Allen Head, Plated Steel
Face Shape
Traditional
Mounting Screw Material
Steel-Zinc Plated
Rating
50A, 3ph 250V
Flammability
UL 94 V-0
Face Style
Finder Groove
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Current Interrupting
Certified for current interrupting at full rated current
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Standard
NEMA
Nema Rating
15-50R
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
12500 W
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified NEMA® WD-6 Compliant UL Listed File E2186
Horsepower - Maximum
7.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 15-50R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
