  11. Straight Blade Receptacle, 15-60R, 60 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

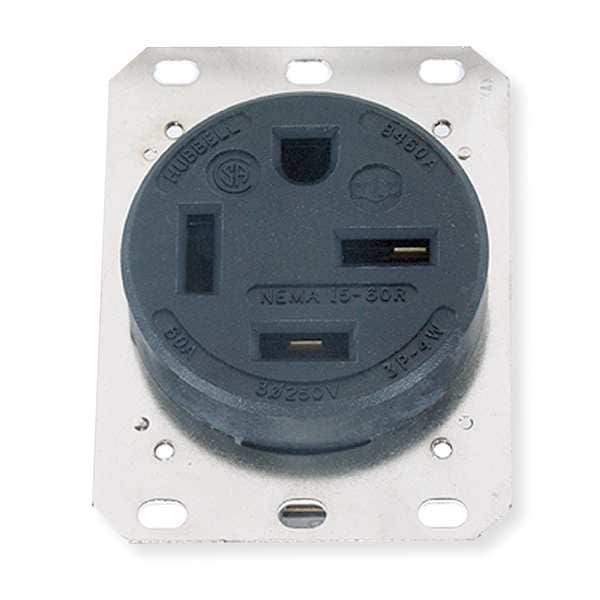

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 15-60R, 60 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded HBL8460A - main

Straight Blade Receptacle, 15-60R, 60 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # HBL8460A

  • Zoro # G2931731

product price: $137.70
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8460A
Zoro #
G2931731
UPC #
783585015187
Country of Origin
United States

Dimensions

Maximum Wire Size
6 AWG
Mount Hole Center-to-Center Width
1.8 in
Face Diameter
2.4 in
Overall Depth
2.4 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
15-60R
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL E2186
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
HP
10 hp
Material
Thermoplastic Polyester
NEMA Receptacle Configuration - Plugs and Receptacles
15-60R
Sub-Category
Single Receptacles
Boot Code
D
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Single
Tamper Resistant
No
Corrosion Resistant
No
Number of Gangs
1
Application Environment
Industrial
Weather Resistant
No
Outlet Type - Plugs and Receptacles
Single
Voltage
250VAC
Mounting Type
Flush
Contact Material
Brass
NEMA Enclosure Rating
1
Horsepower Rating
3 hp
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Market
Industrial
Surge Protection
No
AFCI
No
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
Grade
Federal Specification
Shrouded
No
UL 94 Flammability Rating
V-0
Polarized
Yes
GFCI
No
Ground Screw Material
3/8" Allen Head, Plated Steel
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Terminal Screw Material
3/8" Allen Head, Plated Steel
Device Color
Black
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.040" (1.0) Brass
Face Style
Finder Groove
Box Terminals Material
Copper
Mounting Strap Material
.062" (1.5) Plated Steel
Base Material
Glass Reinforced PET
Receptacle Grade
Heavy Duty Spec Grade
Top Material
Glass Reinforced PET
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Poles and Wires
3 Pole, 4 Wire Grounding
IP Suitability
IP20
Receptacle Style
Single
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
60A, 3ph 250V
Horsepower
10
Flammability
UL 94 V0.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Screw Material
Steel-Zinc Plated

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 60 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 15-60R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No
