  11. Straight Blade Receptacle, 2-20R, 20 A, 250V AC, 2 Pole, 2 Wire, Flush Mount, Non-Grounded

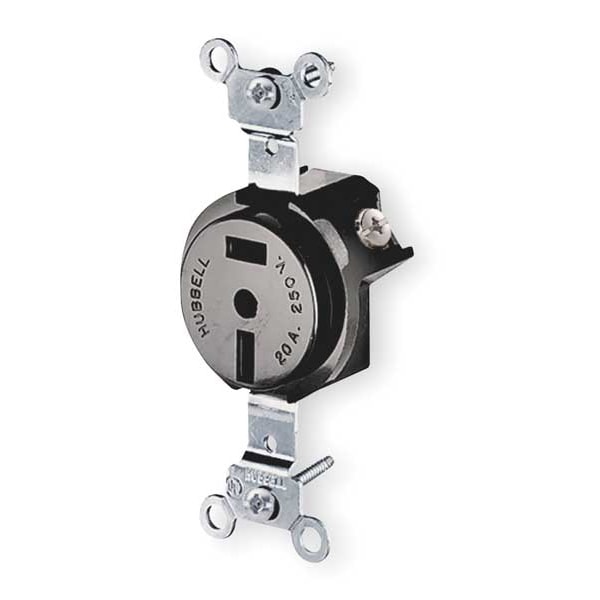

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 2-20R, 20 A, 250V AC, 2 Pole, 2 Wire, Flush Mount, Non-Grounded HBL5552B - main

Straight Blade Receptacle, 2-20R, 20 A, 250V AC, 2 Pole, 2 Wire, Flush Mount, Non-Grounded

  • Mfr # HBL5552B

  • Zoro # G2585484

product price: $27.49
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
2-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5552B
Zoro #
G2585484
UPC #
783585014364
Country of Origin
United States

Dimensions

Height
1.14 in
Width
1.39 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Diameter
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.39 in x 1.14 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
2-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
File E2186, Listed to UL Standard 498, UL Listed
Flange Type
Non-Flanged
Corrosion Resistant
No
Number of Gangs
1
Surge Suppression
No
Voltage
250VAC
NEMA Configuration
2-20
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Single
HP
2 hp
Application Environment
Industrial
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
2-20R
Material
Phenolic
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Mounting Type
Flush
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Type
Single
Horsepower Rating
2 hp
Contact Material
Brass
AFCI
No
Connection Orientation
Straight
Grade
Federal Specification
Cover Type
No Cover
Surge Protection
No
Housing Material
Thermoplastic
UL 94 Flammability Rating
V-1
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
GFCI
No
Market
Industrial
Includes
Grounding Clip, Mounting Hardware
Includes Mounting Hardware
Yes
Polarized
Yes
For Location
Indoor
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Poles and Wires
2 Pole, 2 Wire Non-Grounding
Device Color
Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
2
Face Shape
Traditional
Mounting Screw Material
Steel-Zinc Plated
Current Interrupting
Certified for current interrupting at full rated current
Base Material
Phenolic
Top Material
Phenolic
Rating
20A, 250V
Receptacle Style
Single
Power Contacts Material
.037" (.9) Brass
Receptacle Grade
Heavy Duty Spec Grade
Certification
UL Listed, File E2186, Listed to UL Standard 498
Cord Accomodation
.310"-.430"(7.9-11.9)
Dielectric Voltage
Withstands 2,000V minimum
Flammability
UL 94 V-1 or better, UL 94 V2 or better
Mounting Strap Material
.050" (1.3) Brass
Standard
NEMA
IP Suitability
IP20
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-1 or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9) Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
2
Application
Heavy Duty
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Wattage
5000 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
2-20R
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 2-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 2, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
