  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

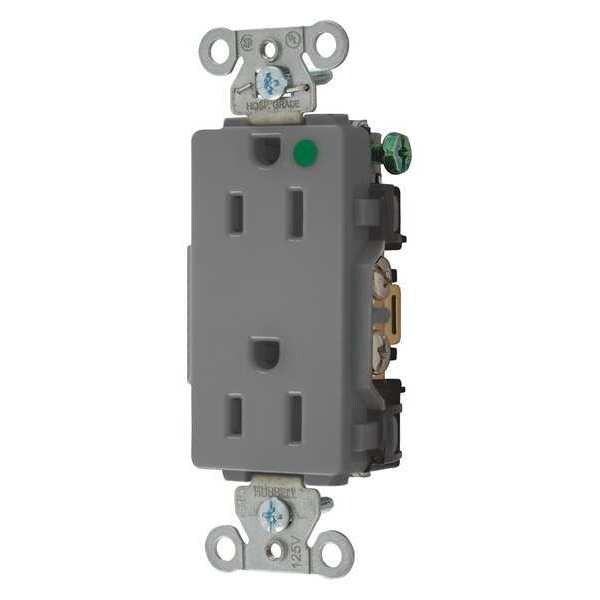

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 2172GY - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 2172GY

  • Zoro # G4571780

product price: $20.85
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2172GY
Zoro #
G4571780
UPC #
783585196671
Country of Origin
Mexico

Dimensions

Width
1.57 in
Height
1.15 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Length
3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.57 in x 1.15 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Rating
1
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Special Features
Standard
Application Environment
Commercial
Mounting Type
Flush
Corrosion Resistant
No
Material
Nylon
Weather Resistant
No
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage
125VAC
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
No
Includes Mounting Hardware
Yes
For Location
Indoor
NEMA Enclosure Rating
1
GFCI
No
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
AFCI
No
Horsepower Rating
1/2 hp
Shrouded
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Housing Material
Nylon
Polarized
Yes
Contact Material
Brass
Market
Commercial
Surge Protection
No
Device Color
Gray
Face
Nylon
Clamping Plate
Plated steel
Dielectric Voltage
Withstands 2,000V minimum
Flammability
UL 94V-2
Automatic Self-grounding Staple
Stainless steel
Base
PBT
Mounting Strap
Galvalized steel
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Power Contacts
Brass
Operating Temperature
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Screws
Zinc plated steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Ground Contacts
Brass
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Style Line decorator
Series
Hubbell-Pro
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Application
Hubbell-Pro Heavy Duty Hospital Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
