  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

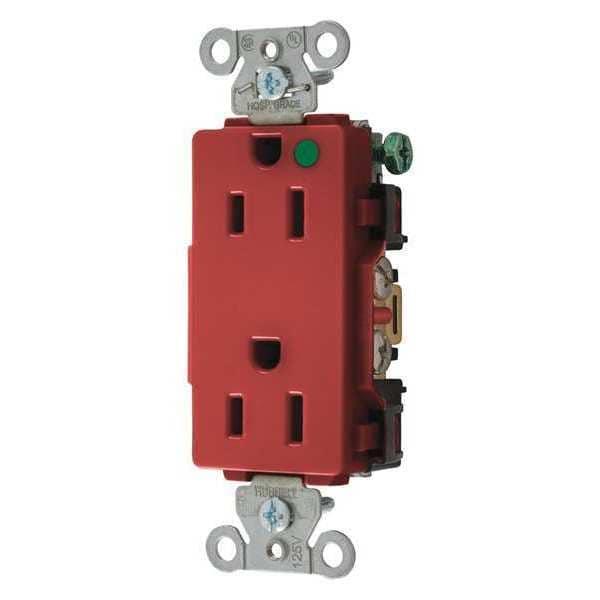

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 2172RED - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 2172RED

  • Zoro # G4440381

product price: $19.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2172RED
Zoro #
G4440381
UPC #
783585196725
Country of Origin
Mexico

Dimensions

Height
1.15 in
Width
1.57 in
Face Plate Height
2.7 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.57 in x 1.15 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Material
Nylon
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Wiring Method
Back, Side
Voltage
125VAC
NEMA Rating
1
Outlet Type
Duplex
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Tamper Resistant
No
Power Indicator
No
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Market
Commercial
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
GFCI
No
Maximum Operating Temperature
167 Degrees F
AFCI
No
Grade
Hospital Grade Fed. Spec.
Contact Material
Brass
For Location
Indoor
Polarized
Yes
Connection Orientation
Straight
Housing Material
Nylon
Horsepower Rating
1/2 hp
Shrouded
No
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Surge Protection
No
Power Contacts
Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Face
Nylon
Mounting Strap
Galvalized steel
Operating Temperature
Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Contacts
Brass
Device Color
Red
Base
PBT
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Clamping Plate
Plated steel
Flammability
UL 94V-2
Dielectric Voltage
Withstands 2,000V minimum
Automatic Self-grounding Staple
Stainless steel
Mounting Screws
Zinc plated steel
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W
Application
Hubbell-Pro Heavy Duty Hospital Grade
Series
Hubbell-Pro
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Style
Style Line decorator
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
