  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

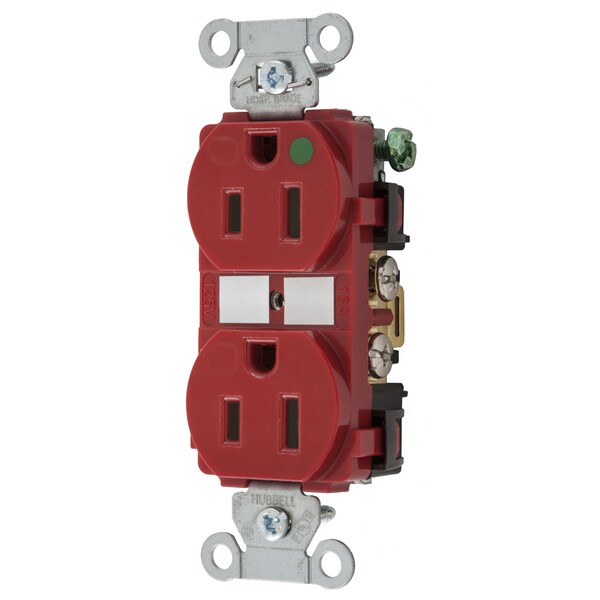

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8200RED - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8200RED

  • Zoro # G300622572

product price:  $19.85
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200RED
Zoro #
G300622572
UPC #
783585197487
Country of Origin
United States

Dimensions

Width
1.57 in
Height
1.15 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.57 in x 1.15 in
Wire Size
#14 AWG to #10 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
C22.2, Certified to CSA, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, No. 42 File 285, UL Listed to UL 498 File No. E2186
Resistance Properties
High impact resistant
Flange Type
Non-Flanged
Type
Receptacle
Color
Red
Material
Nylon
Maximum Horsepower
0.5
Mounting Hardware Material
Screw Mounting
Brand
Hubbell Wiring Device-Kellems
Wattage
1875 W
Number Of Wires
3-Wire
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Smooth Face
Application
Hubbell-Pro Heavy Duty Hospital Grade
Connectivity
Back and Side Wired
Dielectric Strength
Withstands 2,000V minimum
Amperage
15 A
Nema Rating
5-15R
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Carton Quantity
10
Series
Hubbell-Pro
Face
Nylon
Power Contacts
Brass
Flammability
UL 94V-2
Current Interrupting
Certified for current interrupting at full rated current
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Dielectric Voltage
Withstands 2,000V minimum
Base
PBT
Mounting Screws
Zinc plated steel
Mounting Strap
Galvalized steel
Device Color
Red
Automatic Self-grounding Staple
Stainless steel
Clamping Plate
Plated steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Ground Contacts
Brass
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, DuplexReceptacle, Hospital Grade, Hubbell-Pro, 15A 125V, 2-Pole 3-WireGrounding, 5-15R, Red
