  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

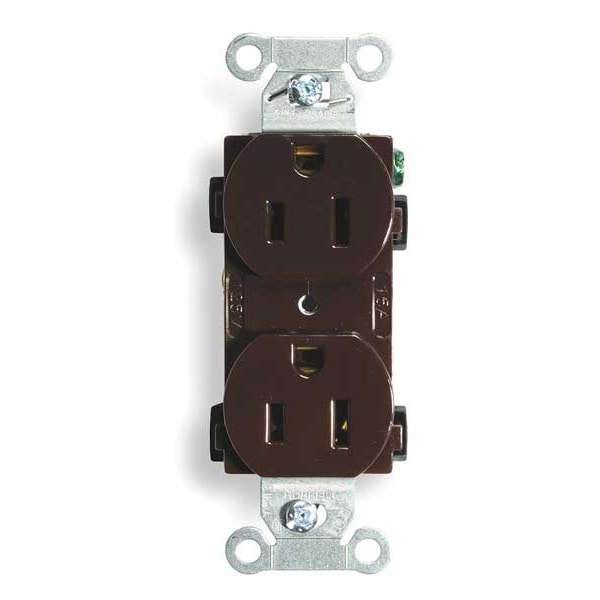

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15

  • Zoro # G1054191

product price: $4.35
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15
Zoro #
G1054191
UPC #
783585127958
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
HP
1/2 hp
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
Weather Resistant
No
Sub-Category
Duplex Receptacles
NEMA Configuration
5-15
Tamper Resistant
No
Outlet Type
Duplex
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Mounting Type
Flush
Type
Duplex
AFCI
No
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Surge Protection
No
Includes Mounting Hardware
Yes
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Horsepower Rating
1/2 hp
For Location
Indoor
Contact Material
Brass
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
NEMA Enclosure Rating
1
GFCI
No
Grade
Federal Specification
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
Polarized
Yes
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.030" (.8) Brass
Standard
NEMA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Auto Ground Clip Material
Stainless Steel
Receptacle Style
Duplex
Receptacle Grade
Specification Grade Commercial Series
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Horsepower
0.5
Device Color
Brown
Top Material
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Rating
15A, 125V
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
UL 94 V-2
Current Interrupting
Certified for current interrupting at full rated current
Face Shape
Traditional
Base Material
Nylon
Mounting Strap Material
.040" (1) Steel (Galvanized)
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42, Federal Specification W-C-59, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
