  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

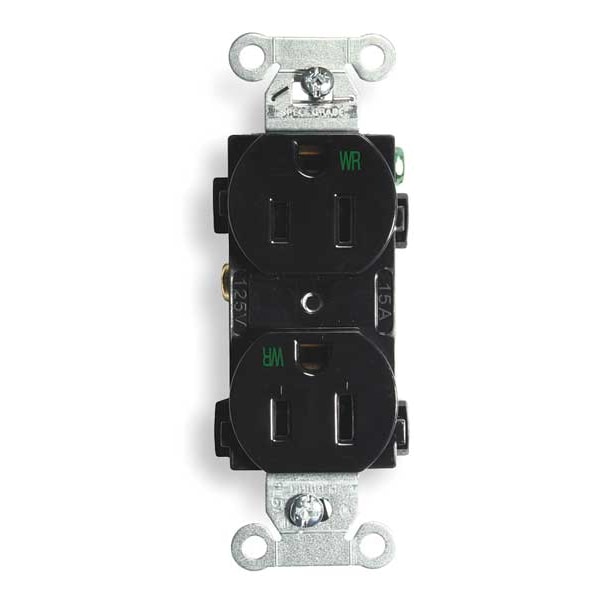

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15BLKWR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15BLKWR

  • Zoro # G3016185

product price:  $6.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BR15BLKWR
Zoro #
G3016185
UPC #
783585144481
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.57 in x 1.07 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Width
1.57 in
Height
1.07 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Color
Black
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-15
Weather Resistant
Yes
Corrosion Resistant
No
Voltage
125VAC
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
Yes
Material
Nylon
Mounting Type
Flush
Outlet Type
Duplex
Sub-Category
Duplex Receptacles
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
No
Surge Suppression
No
Mounting Hardware Material
Screw Mounting
Connectivity
Back and Side Wired
Amperage
15 A
Number Of Wires
3-Wire
Environmental Rating
Weather Resistant
Series
Commercial Specification Grade
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-15R
Wattage
1875 W
Type
Standard Duplex
Maximum Horsepower
0.5
Style
Smooth Face
Dielectric Strength
Withstands 2,000V minimum
Application
Commercial Specification Grade
Market
Commercial, Industrial
Cover Type
No Cover
Contact Material
Brass
Horsepower Rating
1/2 hp
Grade
Federal Specification
AFCI
No
GFCI
No
Polarized
Yes
Shrouded
No
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
Surge Protection
No
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Rating
15A, 125V
Power Contacts Material
.030" (.8) Brass
Mounting Screw Material
Steel-Zinc Plated
Flammability
UL 94 V2.
Top Material
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Base Material
Nylon
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Receptacle Style
Duplex
Standard
NEMA
Device Color
Black
Dielectric Voltage
Withstands 2,000V minimum
Horsepower
0.5
Auto Ground Clip Material
Stainless Steel
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Mounting Strap Material
.040" (1) Steel (Galvanized)
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Brown, Ivory, White, Almond, Light Almond, Gray, Black
Horsepower - Maximum
0.5
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Weather Resistant
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
