  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

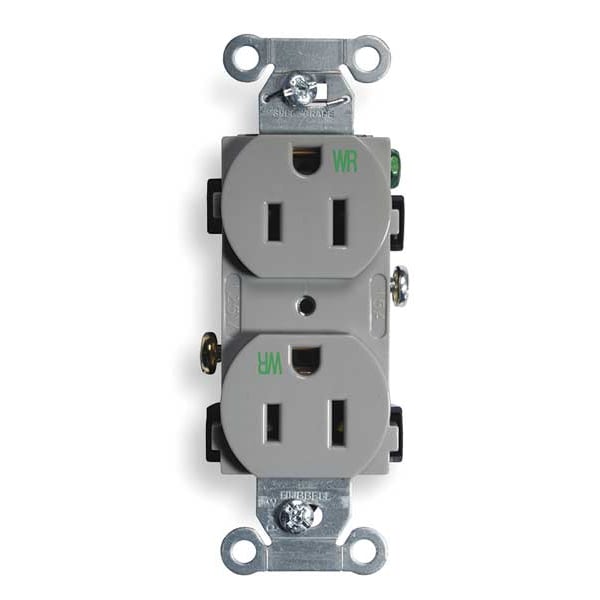

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15GRYWR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15GRYWR

  • Zoro # G2080601

product price:  $6.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15GRYWR
Zoro #
G2080601
UPC #
783585144498
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
3.3 in
Height
3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
1.32 in x 0.83 in x 3.28 in
Width
0.83 in
Length
1.32 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Corrosion Resistant
No
Material
Nylon
Weather Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
NEMA Configuration
5-15
Power Indicator
No
Weather Resistant - Plugs and Receptacles
Yes
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Number of Gangs
1
Voltage
125VAC
Mounting Type
Flush
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1/2 hp
Outlet Type
Duplex
Type
Duplex
Surge Protection
No
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Market
Commercial, Industrial
Contact Material
Brass
Housing Material
Nylon
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Shrouded
No
Horsepower Rating
1/2 hp
Polarized
Yes
AFCI
No
GFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Top Material
Nylon
Face Shape
Traditional
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
Gray
Auto Ground Clip Material
Stainless Steel
Standard
NEMA
Power Contacts Material
.030" (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Rating
15A, 125V
Base Material
Nylon
Mounting Strap Material
.040" (1) Steel (Galvanized)
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Receptacle Style
Duplex
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
UL 94 V-2
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Horsepower
0.5
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Environmental Conditions
Weather Resistant
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W
Application
Commercial Specification Grade
Style
Smooth Face
Series
Commercial Specification Grade
Nema Rating
5-15R
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
