Shop LEVITON

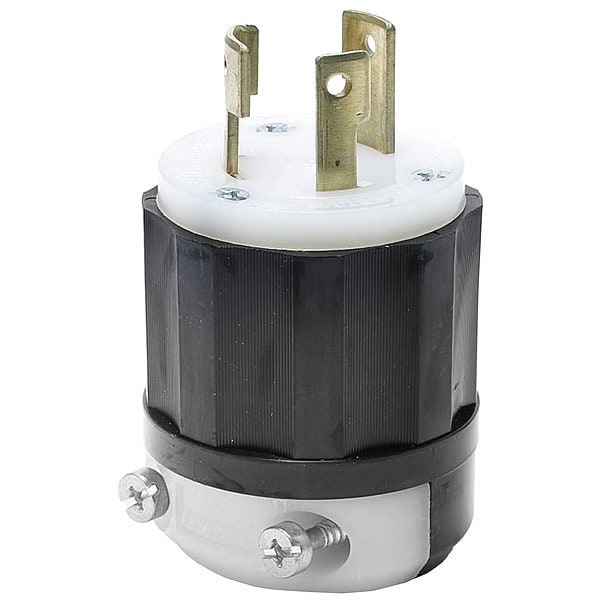

Locking Plug, L11-30P, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 2671

  • Zoro # G604255988

product price:
$
24.59
/ea

Key Features

NEMA Plug Configuration
L11-30P
Current Rating
30 A
Phase
Three
Number of Poles
3
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2671
Zoro #
G604255988
UPC #
07847780790
Country of Origin
Mexico
Item
Locking Plug
NEMA Plug Configuration
L11-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Material
Impact Modified Nylon
Grade
Federal Specification
Special Features
Chemical Resistant, Resists Impact, Rough Use, Sunlight
IP Rating
Not Rated
Body Material
Impact Modified Nylon
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
3 hp
Blade Material
Brass
Midget Locking
No
Polarized
Yes
Flammability
Rated HB or better UL94
NEMA Configuration
L11-30
UL 94 Flammability Rating
HB
Power and Ground Indicating Light
No
Features
Industry Exclusive Limited Lifetime Warranty

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L11-30P, Number of Blades 3, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.84 in, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.385 in, Grade Federal Specification, Grounding Non-Grounded
