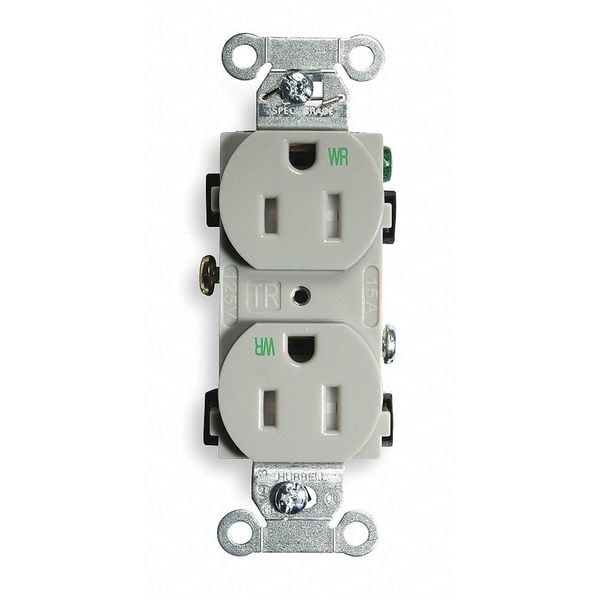

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15GRYWRTR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15GRYWRTR

  • Zoro # G3209717

product price:  $10.35
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BR15GRYWRTR
Zoro #
G3209717
UPC #
783585144566
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Overall Depth
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Wiring Method
Back, Side
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Commercial
NEMA Configuration
5-15
Weather Resistant - Plugs and Receptacles
Yes
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125VAC
Surge Suppression
No
Power Indicator
No
Weather Resistant
Yes
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Number of Gangs
1
Tamper Resistant
Yes
Material
Nylon
Type
Duplex
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Market
Commercial, Industrial
Housing Material
Nylon
Cover Type
No Cover
Shrouded
No
Contact Material
Brass
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Polarized
Yes
Horsepower Rating
1/2 hp
Maximum Operating Temperature
167 Degrees F
AFCI
No
Grade
Federal Specification
Surge Protection
No
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Mounting Strap Material
.040" (1) Steel (Galvanized)
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Mounting Screw Material
Steel-Zinc Plated
Horsepower
0.5
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Grade
Specification Grade Commercial Series, Tamper and Weather Resistant
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.030" (.8) Brass
Receptacle Style
Duplex
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
Gray
Base Material
Nylon
Standard
NEMA
Rating
15A, 125V
Flammability
UL 94 V-2

Description

• Weather-resistance complies with national electrical code requirements
• Tamper-resistant shutter complies with national electrical code requirements
• Smooth face
• Wrap-around galvanized steel strap
• Triple wipe contacts
