Shop HUBBELL WIRING DEVICE-KELLEMS

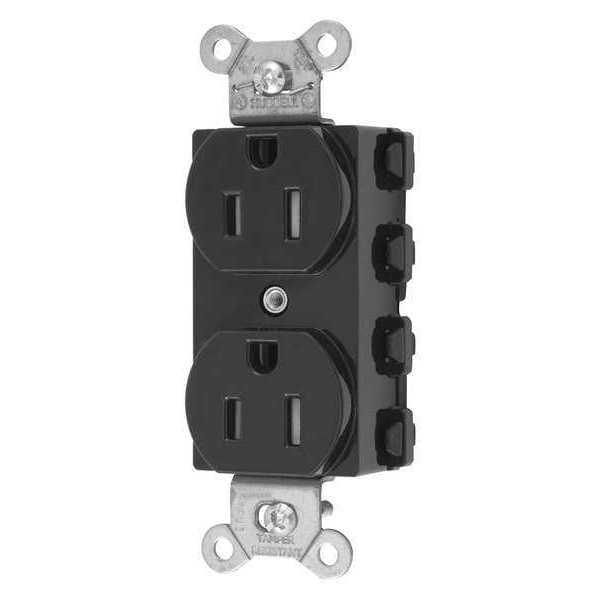

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP5262BKTRA

  • Zoro # G4440591

product price:
$
15.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SNAP5262BKTRA
Zoro #
G4440591
UPC #
00783585552590
Country of Origin
Mexico

Dimensions

Height
1.1 in
Width
1.64 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Face Plate Width
1.6 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Corrosion Resistant
No
Outlet Type
Duplex
Weather Resistant
No
Sub-Category
Duplex Receptacles
HP
1/2 hp
Surge Suppression
No
NEMA Rating
1
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-15
Wiring Method - Plugs and Receptacles
Modular
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Nylon
Number of Gangs
1
Mounting Type
Flush
Market
Commercial
Cover Type
No Cover
Grade
Federal Specification
Shrouded
No
Horsepower Rating
1/2 hp
For Location
Indoor
Polarized
Yes
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
Surge Protection
No
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Housing Material
Nylon
Includes
Wall Plate or Weatherproof Cover
Contact Material
Brass
AFCI
No
Maximum Operating Temperature
167 Degrees F
Series
Extra Heavy Duty
Horsepower - Maximum
0.5
Application
Extra Heavy Duty Specification Grade
Style
Smooth Face
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Number Of Conductors
3-Wire Grounding
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Audible SNAP, indicates solid connection
• Reduces installation time
• Tamper-Resistant
• Assembled in USA
