  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

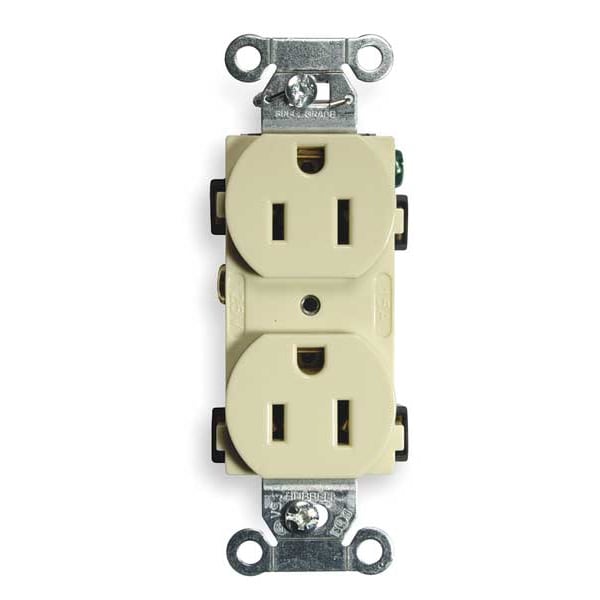

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15I

  • Zoro # G0823392

product price: $3.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15I
Zoro #
G0823392
UPC #
783585834849
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Sub-Category
Duplex Receptacles
Number of Gangs
1
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage
125VAC
Outlet Type
Duplex
Mounting Type
Flush
HP
1/2 hp
Surge Suppression
No
NEMA Configuration
5-15
Type
Duplex
AFCI
No
Cover Type
No Cover
Shrouded
No
Surge Protection
No
UL 94 Flammability Rating
V-2
For Location
Indoor
Polarized
Yes
Contact Material
Brass
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Includes Mounting Hardware
Yes
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Grade
Federal Specification
Housing Material
Nylon
GFCI
No
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Maximum Operating Temperature
167 Degrees F
Rating
15A, 125V
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Grade
Specification Grade Commercial Series
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
UL 94 V-2
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Auto Ground Clip Material
Stainless Steel
Top Material
Nylon
Power Contacts Material
.030" (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Face Shape
Traditional
Device Color
Ivory
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Standard
NEMA
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Style
Duplex
Horsepower
0.5
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42, Federal Specification W-C-59, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
