  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

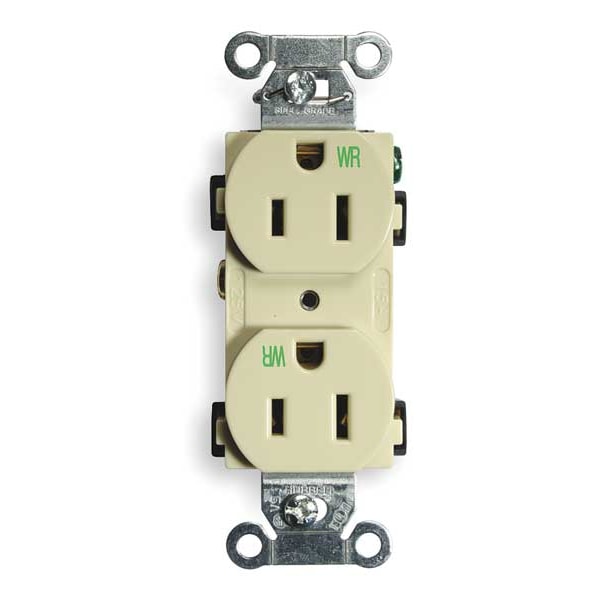

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15IWR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15IWR

  • Zoro # G0825194

product price:  $6.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15IWR
Zoro #
G0825194
UPC #
783585144504
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Length
1.32 in
Height
3.28 in
Wire Size
#14 AWG to #10 AWG
Width
0.83 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Voltage
125VAC
HP
1/2 hp
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
Yes
Power Indicator
No
Application Environment
Commercial
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
NEMA Configuration
5-15
Weather Resistant
Yes
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Number of Gangs
1
Type
Duplex
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
GFCI
No
Contact Material
Brass
Grade
Federal Specification
UL 94 Flammability Rating
V-2
Polarized
Yes
NEMA Enclosure Rating
1
Market
Commercial, Industrial
Shrouded
No
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Cover Type
No Cover
Connection Orientation
Straight
Surge Protection
No
Housing Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Base Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Ivory
Receptacle Style
Duplex
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Power Contacts Material
.030" (.8) Brass
Face Shape
Traditional
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Mounting Strap Material
.040" (1) Steel (Galvanized)
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Auto Ground Clip Material
Stainless Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3-Wire Grounding
Flammability
UL 94 V-2
Horsepower
0.5
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Rating
15A, 125V
Series
Commercial Specification Grade
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Application
Commercial Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Style
Smooth Face
Nema Rating
5-15R
Environmental Conditions
Weather Resistant

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
