Shop PASS & SEYMOUR

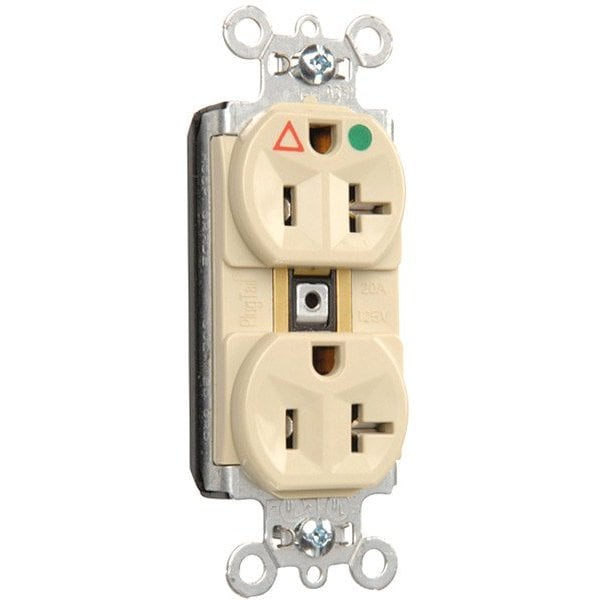

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Recessed Mount, Isolated Ground

  • Mfr # PTIG8300I

  • Zoro # G015677522

product price:  $13.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Three
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PTIG8300I
Zoro #
G015677522
UPC #
785007278064
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
0.6 in
Face Plate Width
1.5 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Width
0.9 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Three
Number of Poles
2
Number of Wires
3
Wire Connection Type
Wire Leads
Wiring Method
Back
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
Fed Spec, UL 498, cULus Listed
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Housing Material
Polycarbonate
Market
Commercial
Features
Auto-Ground Clip Assures Positive Ground, Crimped and Welded Contacts, Pre-Stripped Connector Leads
Contact Material
Brass
Grade
Hospital Grade
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
GFCI
No
Maximum Operating Temperature
140 Degrees F
For Environment
Corrosive
Surge Protection
No
AFCI
No
Shrouded
No
Cover Type
No Cover
NEMA Enclosure Rating
1, 6
Flange Shape
Oval
Polarized
Yes
Hub Type
Feed Through
Connection Orientation
Straight
Number of Wall Plates Included
0
Number of Gangs
1
Number of Outlets
2

Description

Receptacle
