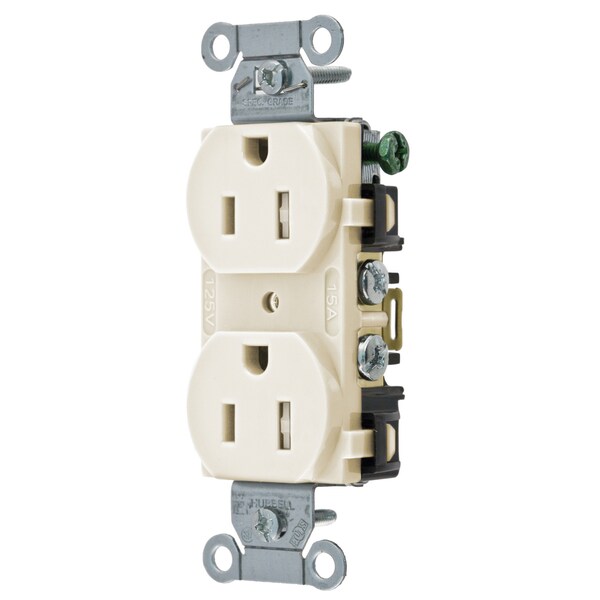

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15LATR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15LATR

  • Zoro # G400701382

product price:  $8.03
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BR15LATR
Zoro #
G400701382
UPC #
783585144108
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Auto Ground Clip Material
Stainless Steel
Flammability
UL 94 V2.
Mounting Strap Material
.040" (1) Steel (Galvanized)
Top Material
Nylon
Device Color
Light Almond
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Power Contacts Material
.030" (.8) Brass
Receptacle Style
Duplex
Horsepower
0.5
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Product Type
Flush-receptacles
Base Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Standard
NEMA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
15A, 125V
Face Shape
Traditional
Mounting Screw Material
Steel-Zinc Plated

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-WireGrounding, 15A 125V, 5-15R, Light Almond, Single Pack
