- Item

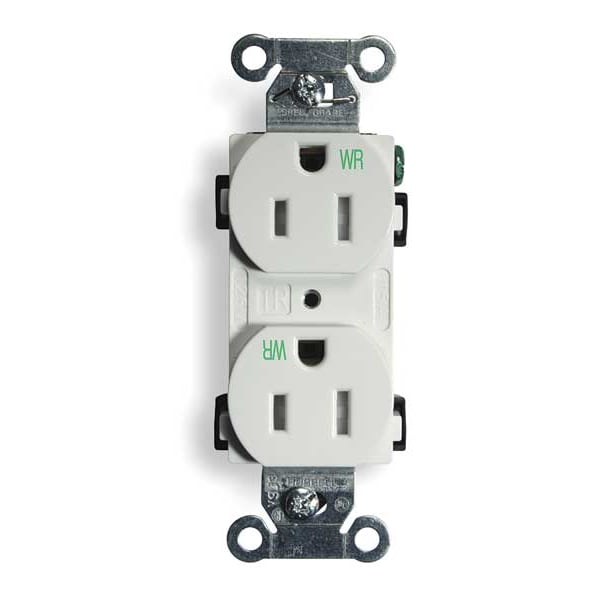

- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Grounded
- Housing Color
- White
- Mount Type
- Flush
- Standards
- CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
- Resistance Properties
- Tamper Resistant, Weather Resistant
- Flange Type
- Non-Flanged
- Wiring Method - Plugs and Receptacles
- Back and Side
- Application Environment
- Commercial
- Sub-Category
- Duplex Receptacles
- Material
- Nylon
- Mounting Type
- Flush
- Tamper Resistant
- Yes
- Mounting Type - Plugs and Receptacles
- Flush
- Surge Suppression
- No
- Weather Resistant - Plugs and Receptacles
- Yes
- HP
- 1/2 hp
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- NEMA Configuration
- 5-15
- Corrosion Resistant
- No
- Color
- White
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-15R
- Outlet Type
- Duplex
- Voltage
- 125VAC
- Weather Resistant
- Yes
- Power Indicator
- No
- Number of Gangs
- 1
- Dielectric Strength
- Withstands 2,000V minimum
- Style
- Smooth Face
- Carton Quantity
- 10
- Series
- Commercial Specification Grade
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 1875 W
- Type
- Tamper-Resistant, Weather Resistant
- Mounting Hardware Material
- Screw Mounting
- Application
- Commercial Specification Grade
- Maximum Horsepower
- 0.5
- Environmental Rating
- Weather Resistant
- Nema Rating
- 5-15R
- Amperage
- 15 A
- Brand
- Hubbell Wiring Device-Kellems
- Connectivity
- Back and Side Wired
- Housing Material
- Nylon
- GFCI
- No
- Polarized
- Yes
- Includes
- Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
- Cover Type
- No Cover
- Grade
- Federal Specification
- Minimum Operating Temperature
- -40 Degrees F
- UL 94 Flammability Rating
- V-2
- NEMA Enclosure Rating
- 1
- AFCI
- No
- Horsepower Rating
- 1/2 hp
- Contact Material
- Brass
- Maximum Operating Temperature
- 167 Degrees F
- Includes Mounting Hardware
- Yes
- Shrouded
- No
- Market
- Commercial, Industrial
- Connection Orientation
- Straight
- Surge Protection
- No
- Mounting Strap Material
- .040" (1) Steel (Galvanized)
- Horsepower
- 0.5
- Poles and Wires
- 2 Pole, 3-Wire Grounding
- Mounting Screw Material
- Steel-Zinc Plated
- Flammability
- UL 94 V2.
- Terminal Accommodation
- #14-#10 AWG copper stranded or solid conductor only
- Device Color
- White
- Dielectric Voltage
- Withstands 2,000V minimum
- Face Shape
- Traditional
- Power Contacts Material
- .030" (.8) Brass
- Auto Ground Clip Material
- Stainless Steel
- Current Interrupting
- Certified for current interrupting at full rated current
- Other Available Colors
- Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
- Rating
- 15A, 125V
- Certification
- UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
- Base Material
- Nylon
- Top Material
- Nylon
- Receptacle Grade
- Specification Grade Commercial Series, Tamper and Weather Resistant
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Temperature Rise
- Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
- Standard
- NEMA
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Receptacle Style
- Duplex
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Environmental Conditions
- Weather Resistant
- Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Industry Standard(s)
- Certified to CSA C22.2, No. 42
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
- Horsepower - Maximum
- 0.5
- Material - Mounting Hardware
- Screw Mounting
