  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

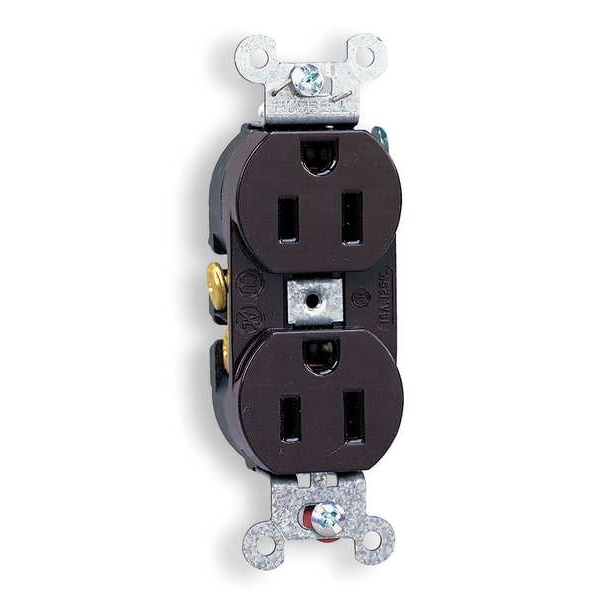

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR15 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR15

  • Zoro # G2326116

product price: $2.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR15
Zoro #
G2326116
UPC #
783585900001
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
3.3 in
Wire Size
#14 AWG to #10 AWG
Length
1.32 in
Display Size
Standard Sized Product
Height
3.28 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Width
0.83 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Voltage
125VAC
Power Indicator
No
Sub-Category
Duplex Receptacles
Number of Gangs
1
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Surge Suppression
No
Material
Nylon
Wiring Method - Plugs and Receptacles
Side
Tamper Resistant
No
NEMA Configuration
5-15
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Duplex
Type
Duplex
AFCI
No
Shrouded
No
NEMA Enclosure Rating
1
Connection Orientation
Straight
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
For Location
Indoor
Market
Commercial
Grade
Federal Specification
Includes Mounting Hardware
Yes
Housing Material
Nylon
Cover Type
No Cover
Contact Material
Brass
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
GFCI
No
Rating
15A, 125V
Power Contacts Material
.031" (.8) Phosphor Bronze
Device Color
Brown
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Face Shape
Traditional
Base Material
Nylon
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Style
Duplex
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V2.
Dielectric Voltage
Withstands 2,000V minimum
Terminal Screw Material
#8-32 Brass, Multiple Drive
Receptacle Grade
Commercial Series Specification Grade
Poles and Wires
2 Pole, 3-Wire Grounding
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Smooth Face
Top Material
Nylon
Auto Ground Clip Material
.032" (.8) Steel Wire
Horsepower
0.5
Style
Smooth Face
Nema Rating
5-15R
Series
Commercial Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Application
Commercial Specification Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
