  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

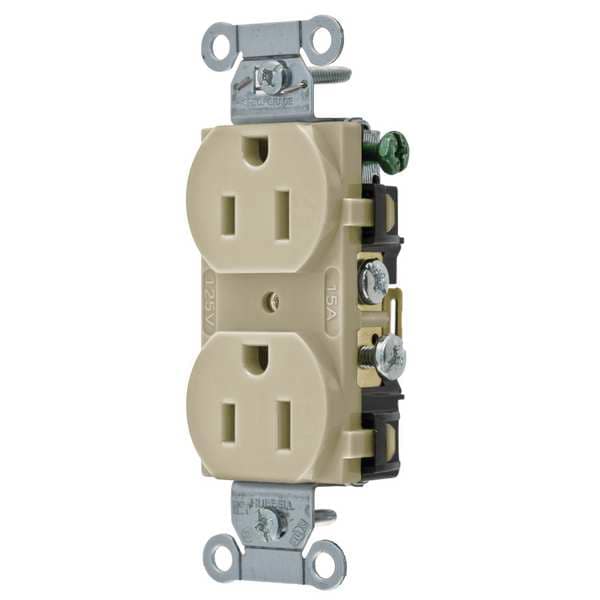

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR15I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR15I

  • Zoro # G1697114

product price:  $3.25
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CR15I
Zoro #
G1697114
UPC #
783585900056
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
3.3 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Display Size
Standard Sized Product
Width
0.83 in
Height
3.28 in
Wire Size
#14 AWG to #10 AWG
Dimensions
1.32 in x 0.83 in x 3.28 in
Length
1.32 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage
125VAC
HP
1/2 hp
Power Indicator
No
Outlet Type
Duplex
Number of Gangs
1
Tamper Resistant
No
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Material
Nylon
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Application Environment
Commercial
Weather Resistant
No
NEMA Configuration
5-15
Wiring Method - Plugs and Receptacles
Side
Type
Duplex
AFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Commercial
Housing Material
Nylon
Horsepower Rating
1/2 hp
Polarized
Yes
UL 94 Flammability Rating
V-2
Cover Type
No Cover
GFCI
No
Grade
Federal Specification
Includes Mounting Hardware
Yes
Shrouded
No
Connection Orientation
Straight
Surge Protection
No
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Device Color
Ivory
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.031" (.8) Phosphor Bronze
Auto Ground Clip Material
.032" (.8) Steel Wire
Rating
15A, 125V
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Poles and Wires
2 Pole, 3-Wire Grounding
Receptacle Grade
Commercial Series Specification Grade
Terminal Screw Material
#8-32 Brass, Multiple Drive
Mounting Screw Material
Steel-Zinc Plated
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Base Material
Nylon
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Standard
NEMA
Receptacle Style
Duplex
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Horsepower
0.5
Flammability
UL 94 V-2
Face Style
Smooth Face
Mounting Strap Material
.040" (1) Steel (Galvanized)
Face Shape
Traditional
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Commercial Specification Grade
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Material - Mounting Hardware
Screw Mounting
Style
Smooth Face
Application
Commercial Specification Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
