  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

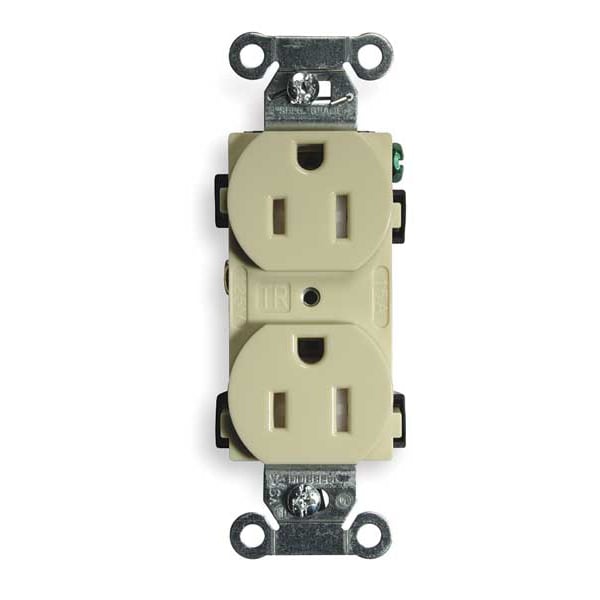

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR15ITR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR15ITR

  • Zoro # G1008725

product price: $7.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR15ITR
Zoro #
G1008725
UPC #
783585144221
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Overall Depth
3.3 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Wire Size
#14 AWG to #10 AWG
Height
3.28 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Length
1.32 in
Display Size
Standard Sized Product
Width
0.83 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Side
Weather Resistant - Plugs and Receptacles
No
NEMA Configuration
5-15
Voltage
125VAC
Power Indicator
No
Weather Resistant
No
HP
1/2 hp
Tamper Resistant
Yes
Number of Gangs
1
Sub-Category
Duplex Receptacles
Application Environment
Commercial
Material
Nylon
Outlet Type
Duplex
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
Type
Duplex
Surge Protection
No
Connection Orientation
Straight
Contact Material
Brass
Housing Material
Nylon
Polarized
Yes
AFCI
No
Shrouded
No
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Includes Mounting Hardware
Yes
Market
Commercial
Horsepower Rating
1/2 hp
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
GFCI
No
Cover Type
No Cover
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-2
Ground Screw Material
#8-32 Brass, Multiple Drive
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Horsepower
0.5
Base Material
Nylon
Device Color
Ivory
Top Material
Nylon
Mounting Strap Material
.040" (1) Steel (Galvanized)
Mounting Screw Material
Steel-Zinc Plated
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Receptacle Grade
Commercial Series Specification Grade, Tamper Resistant
Auto Ground Clip Material
.032" (.8) Steel Wire
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3-Wire Grounding
Power Contacts Material
.031" (.8) Phosphor Bronze
Dielectric Voltage
Withstands 2,000V minimum
Face Style
Smooth Face
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Face Shape
Traditional
Rating
15A, 125V
Terminal Screw Material
#8-32 Brass, Multiple Drive
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Style
Duplex
Standard
NEMA
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Application
Commercial Specification Grade
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Series
Commercial Specification Grade
Nema Rating
5-15R
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Style
Smooth Face
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2, NEMA WD-6, UL 498, Voltage Rating 125V AC
