Shop HUBBELL WIRING DEVICE-KELLEMS

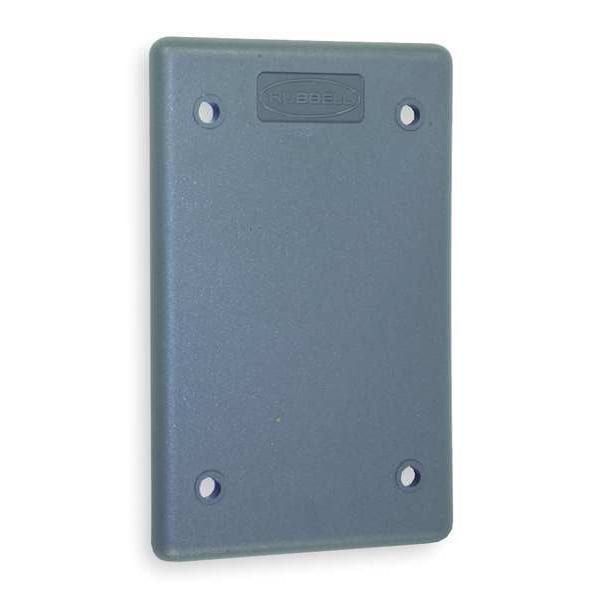

Blank Wall Plates, Number of Gangs: 1 Thermoplastic, Light Texture Finish, Gray

  • Mfr # HBLP14FS

  • Zoro # G0709572

product price:  $8.25
/ea

Key Features

Number of Gangs
1
Color
Gray
Material
Thermoplastic
Finish
Light Texture
Size
4.64"H x 2.94"W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLP14FS
Zoro #
G0709572
UPC #
783585318127
Country of Origin
United States

Dimensions

Size
4.64"H x 2.94"W
Plate Size
Standard
Overall Width
3.1 in
Overall Height
0.4 in
Display Size
1-Gang
Mount Hole Center-to-Center Height
3.28 in

Details

Item
Blank Wall Plates
Number of Gangs
1
Color
Gray
Material
Thermoplastic
Finish
Light Texture
Weather Resistant
No
Tamper Resistant
No
Description/Special Features
UV Stabilized
Standards
ANSI, NEMA WD-1 and WD-6
Type
Cover Plate
Resistance Properties
Impact Resistant
Number of Outlet Openings
0
UL 94 Flammability Rating
V-0
Compatible with Series
FS/FD Style
For Use With
Portable Outlet Box
Shape
Rectangular
Material Type
Non-Metallic
Mount Type
Surface
Number of Switch Openings
0
Wall Plate Type
Blank
Listings and Certifications
UL514C, UL467 and UL50 Enclosures Types 1, 3R. CSA C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No.0.4 (Impedance).
Indoor Cover Plate Screw Material
Zinc Plated Steel
Flammability
UL94 V-0, UL 94V0, 94-5VA classification.
Impact and Crush Resistance
In accordance with UL 514C, UL50, C22.2 N0. 18 and C22.2 No. 94
Operating Temperatures
80 ° C Maximum; -35 ° C Minimum.
UV Resistance
All materials are UV Stabilized.
Cover Plate Gasket Material
UL Closed-Cell Foam (aging and oil resistant).
Moisture Resistance
Wet and Damp locations, Enclosure Type 3R when used with weatherproof cover plates. Dry, indoor locations, Enclosure Type 1 with all other cover plates.
Outdoor Cover Plate Screw Material
Stainless Steel
Device Color
Gray
Portable Outlet Box
Portable Outlet Box Plates
POB Style
Blank Non-Metallic FS Cover Plate
Number Of Outlets
1-Device
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Non-Metallic Fs Cover Plate
Performance
Environmental - Flammability - UL94 V-0
Application
No Openings
Material - Mounting Hardware
Box Mount- Mounting Screws
Industry Standard(s)
Meets NEMA WD-1, WD-6 And ANSI Standards
Knockouts
None
Construction
Molded
Item Type
Weatherproofing Covers
Number of USB Openings
0
Outlet Orientation
Vertical
Compatible Product Type
Portable Outlet Boxes

Description

Hubbell's fully UL Listed surface mount box is engineered with features that allow easy, code compliant installation of all types of devices from 15A to 50A. These features include a metallic ground bonding bracket, threaded conduit hubs and external mounting supports. Together with an industry first 55 degree angle adapter, the combination of devices is the only code compliant 45 cu.in. solution for 50A 4 wire installations. The angle adapter can also be installed separately for panel applications.
• Made of impact-resistant PBT
• Suitable for use with any FS/FD style surface mount box
