  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

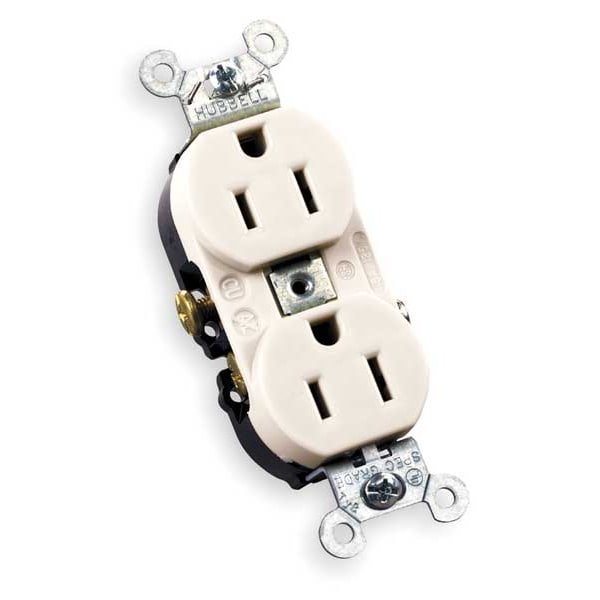

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR15WHI - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR15WHI

  • Zoro # G3254587

product price:  $2.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR15WHI
Zoro #
G3254587
UPC #
783585900070
Country of Origin
China

Dimensions

Overall Depth
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Height
3.28 in
Length
1.32 in
Wire Size
#14 AWG to #10 AWG
Dimensions
1.32 in x 0.83 in x 3.28 in
Width
0.83 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Tamper Resistant
No
Voltage
125VAC
HP
1/2 hp
Surge Suppression
No
Material
Nylon
Corrosion Resistant
No
Number of Gangs
1
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Side
NEMA Configuration
5-15
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type
Flush
Weather Resistant
No
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Standard Duplex
Outlet Type
Duplex
Type
Duplex
Shrouded
No
Includes Mounting Hardware
Yes
Grade
Federal Specification
Surge Protection
No
Cover Type
No Cover
Market
Commercial
AFCI
No
GFCI
No
Horsepower Rating
1/2 hp
Polarized
Yes
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
NEMA Enclosure Rating
1
Housing Material
Nylon
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Top Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass, Multiple Drive
Horsepower
0.5
Auto Ground Clip Material
.032" (.8) Steel Wire
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
15A, 125V
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.031" (.8) Phosphor Bronze
Flammability
UL 94 V2.
Face Style
Smooth Face
Receptacle Grade
Commercial Series Specification Grade
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Style
Duplex
Face Shape
Traditional
Mounting Strap Material
.040" (1) Steel (Galvanized)
Standard
NEMA
Device Color
White
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Base Material
Nylon
Series
Commercial Specification Grade
Application
Commercial Specification Grade
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Style
Smooth Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W
Horsepower - Maximum
0.5
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Nema Rating
5-15R

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
