  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

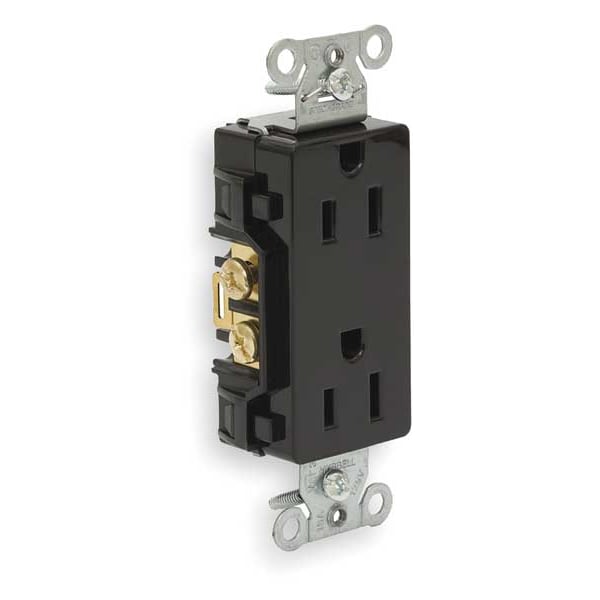

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15BLK - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15BLK

  • Zoro # G3280182

product price: $5.94
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15BLK
Zoro #
G3280182
UPC #
783585127835
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
2.7 in
Mount Hole Center-to-Center Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant
No
Outlet Type
Decorator
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
HP
1/2 hp
Mounting Type
Flush
NEMA Configuration
5-15
Number of Gangs
1
Surge Suppression
No
Corrosion Resistant
No
Voltage
125VAC
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Type
Duplex
Grade
Federal Specification
Polarized
Yes
AFCI
No
Contact Material
Brass
Surge Protection
No
Includes Mounting Hardware
Yes
Connection Orientation
Straight
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
Housing Material
Nylon
Cover Type
No Cover
Shrouded
No
GFCI
No
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Auto Ground Clip Material
Stainless Steel
Dielectric Voltage
Withstands 2,000V minimum
Rating
15A, 125V
Power Contacts Material
.030" (.8) Brass
Top Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Horsepower
0.5
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Flammability
UL 94 V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Standard
NEMA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Mounting Strap Material
.040" (1) Steel (Galvanized)
Face Style
Smooth Face
Ground Screw Material
#8-32 Brass, Multiple Drive
Face Shape
Decorator
Device Color
Black
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass, Multiple Drive
Base Material
Nylon
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
