  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

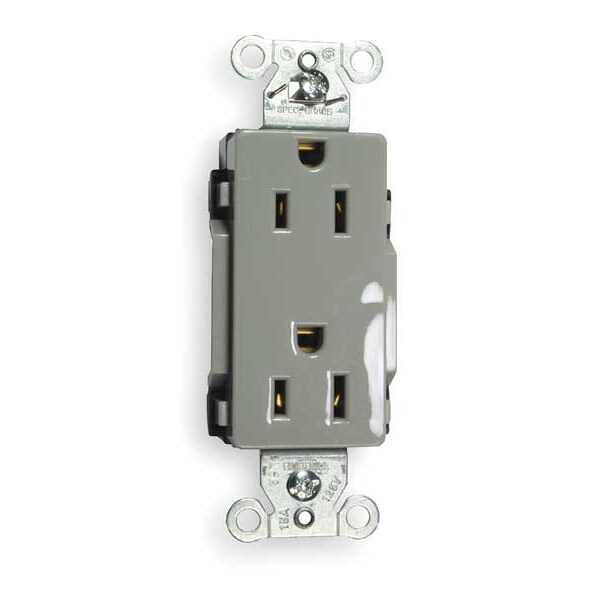

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15GRY - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15GRY

  • Zoro # G2139496

product price: $5.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15GRY
Zoro #
G2139496
UPC #
783585127811
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Width
1.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Mounting Type
Flush
Power Indicator
No
Outlet Type
Decorator
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Corrosion Resistant
No
Material
Nylon
Sub-Category
Duplex Receptacles
NEMA Configuration
5-15
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125VAC
Number of Gangs
1
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Type
Duplex
Market
Commercial, Industrial
Shrouded
No
Surge Protection
No
Contact Material
Brass
Polarized
Yes
GFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
AFCI
No
Housing Material
Nylon
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Grade
Federal Specification
For Location
Indoor
Horsepower
0.5
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Current Interrupting
Certified for current interrupting at full rated current
Base Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Gray
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Standard
NEMA
Auto Ground Clip Material
Stainless Steel
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Power Contacts Material
.030" (.8) Brass
Face Style
Smooth Face
Mounting Strap Material
.040" (1) Steel (Galvanized)
Terminal Screw Material
#8-32 Brass, Multiple Drive
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Top Material
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Rating
15A, 125V
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
UL 94 V2.
Ground Screw Material
#8-32 Brass, Multiple Drive
Face Shape
Decorator
Mounting Screw Material
Steel-Zinc Plated
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
