  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

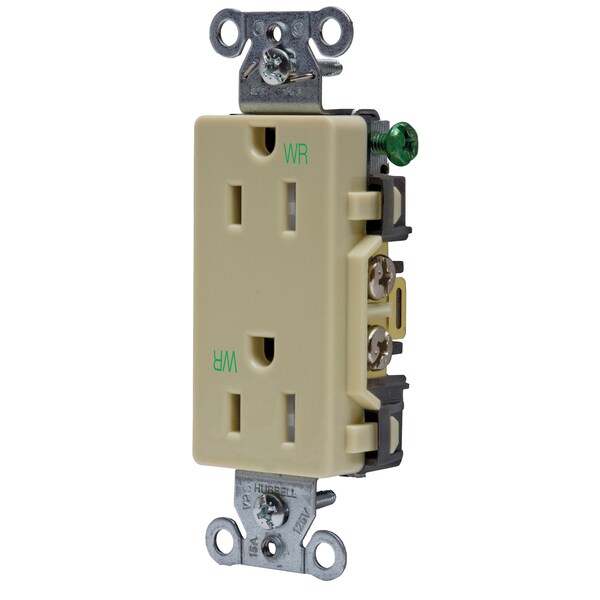

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15IWRTR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15IWRTR

  • Zoro # G500702487

product price:  $14.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DR15IWRTR
Zoro #
G500702487
UPC #
783585144788
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper and Weather Resistant
Flange Type
Non-Flanged
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
Ivory
Mounting Strap Material
.040" (1) Steel (Galvanized)
Power Contacts Material
.030" (.8) Brass
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Terminal Screw Material
#8-32 Brass, Multiple Drive
Auto Ground Clip Material
Stainless Steel
Face Style
Smooth Face
Rating
15A, 125V
Standard
NEMA
Horsepower
0.5
Top Material
Nylon
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Face Shape
Decorator
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Product Type
Flush-receptacles
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper and Weather Resistant
Base Material
Nylon
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material
#8-32 Brass, Multiple Drive
Mounting Screw Material
Steel-Zinc Plated
Flammability
UL 94 V2.
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Weather and Tamper-Resistant Duplex, Decorator/Commercial/IndustrialGrade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack
