  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

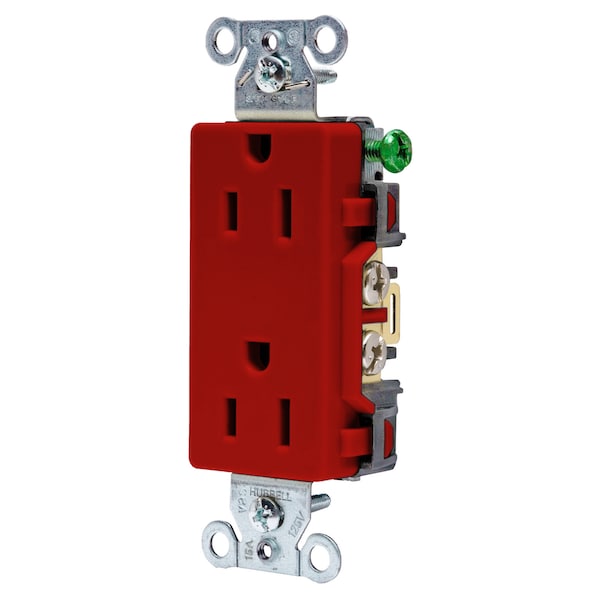

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15R - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15R

  • Zoro # G000701331

product price: $6.55
/ea
Sold in multiples of 2 for $13.10

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15R
Zoro #
G000701331
UPC #
783585197685
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Face
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Mounting Screws
Galvanized Steel
Mounting Strap
.040 in. (1) Galvanized steel
Terminal Screws
Plated steel
Flammability
UL 94 V-2
Power Contacts
.030 in. (.8) Brass
Base
Nylon
Ground Contacts
Brass
Automatic Self-grounding Staple
Stainless steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Wire Clamp
.062 in. (1.6) Nickel plated steel
Device Color
Red

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Decorator DuplexReceptacle, Commercial Grade, Smooth Face, 15A 125V, 2-Pole 3-WireGrounding, 5-15R, Side Wired Only, Red
