  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

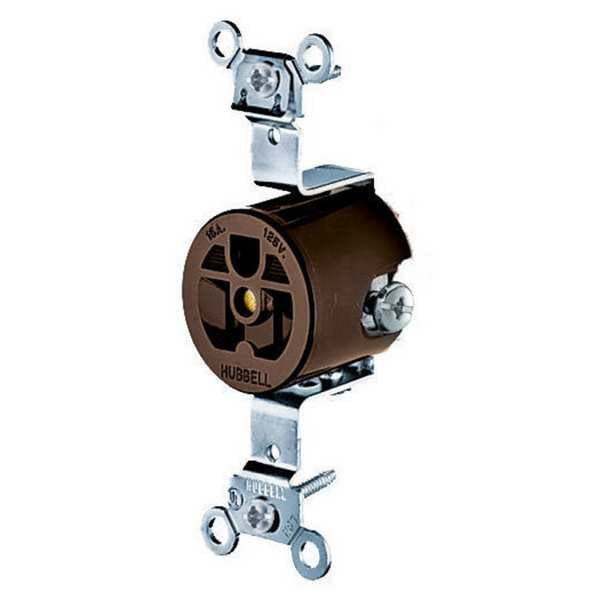

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5251 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5251

  • Zoro # G3242617

product price: $15.85
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5251
Zoro #
G3242617
UPC #
783585013817
Country of Origin
United States

Dimensions

Width
1.39 in
Height
1.13 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Diameter
1.4 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Length
3.28 in
Dimensions
3.28 in x 1.39 in x 1.13 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Single
Power Indicator
No
Corrosion Resistant
No
Material
Thermoplastic
Application Environment
Industrial
Voltage
125VAC
Tamper Resistant
No
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Single
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Number of Gangs
1
Surge Suppression
No
Type
Single
Polarized
Yes
Grade
Federal Specification
NEMA Enclosure Rating
1
Shrouded
No
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
Market
Industrial
Includes Mounting Hardware
Yes
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-0
Housing Material
PBT
Cover Type
No Cover
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
AFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Approvals
UL, CSA
Rating
15A 125V, 2p3w
Poles and Wires
2 Pole, 3 Wire Grounding
Flammability
UL 94 V-0
Receptacle Style
Single
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Brown
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Current Interrupting
Certified for current interrupting at full rated current
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
0.5
Application
Heavy Duty
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Industry Standard(s)
Certified to CSA 22.2, No. 42 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed, File E2186
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Series
Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
5-15R

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL E2186, Voltage Rating 125V AC
