  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

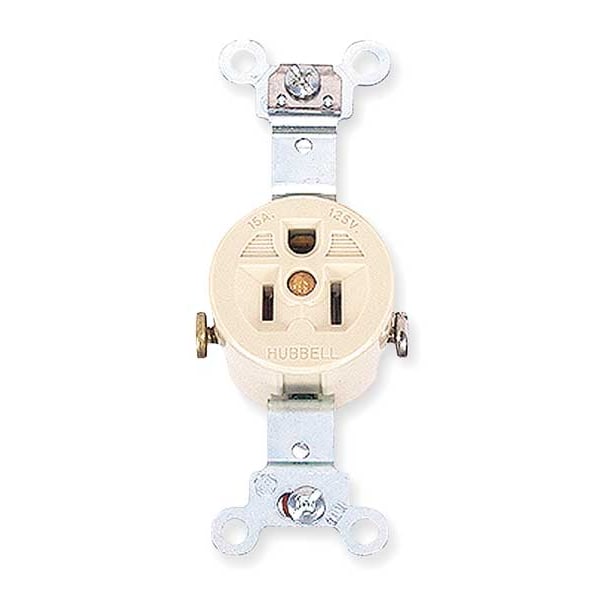

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5251I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5251I

  • Zoro # G3138213

product price: $15.79
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5251I
Zoro #
G3138213
UPC #
783585014128
Country of Origin
United States

Dimensions

Height
1.13 in
Width
1.39 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Diameter
1.4 in
Dimensions
3.28 in x 1.39 in x 1.13 in
Length
3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA, UL
Flange Type
Non-Flanged
Tamper Resistant
No
Number of Gangs
1
Corrosion Resistant
No
Outlet Type
Single
Sub-Category
Single Receptacles
Wiring Method
Side
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Thermoplastic
Wiring Method - Plugs and Receptacles
Side
Mounting Type
Flush
Application Environment
Industrial
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Surge Suppression
No
HP
1/2 hp
Type
Single
Grade
Federal Specification
Market
Industrial
NEMA Enclosure Rating
1
Cover Type
No Cover
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-0
For Location
Indoor
Includes Mounting Hardware
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Shrouded
No
Polarized
Yes
Housing Material
Thermoplastic
Connection Orientation
Straight
GFCI
No
AFCI
No
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Rating
15A 125V, 2p3w
Receptacle Style
Single
Poles and Wires
2 Pole, 3 Wire Grounding
Approvals
UL, CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
1875 W
Application
Heavy Duty
Nema Rating
5-15R
Industry Standard(s)
Certified to CSA 22.2, No. 42 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed, File E2186
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL E2186, Voltage Rating 125V AC
