  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

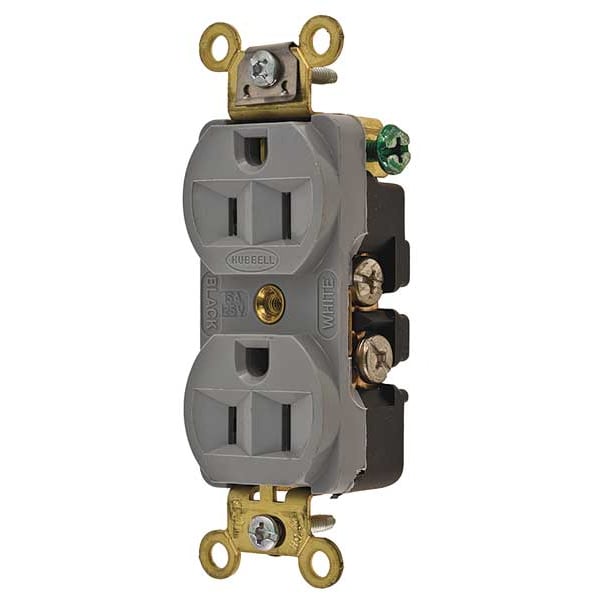

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5252GY - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5252GY

  • Zoro # G0594255

product price:  $16.54
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5252GY
Zoro #
G0594255
UPC #
783585434889
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Height
1.05 in
Dimensions
3.28 in x 1.33 in x 1.05 in
Length
3.28 in
Width
1.33 in
Wire Size
#14 AWG to #10 AWG
Face Plate Height
2.7 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Corrosion Resistant
No
Voltage
125VAC
Surge Suppression
No
Weather Resistant
No
Outlet Type
Duplex
Number of Gangs
1
Application Environment
Industrial
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
NEMA Configuration
5-15
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Color
Gris
Application
Extra Heavy Duty Compact
Weight
0.25 lb
Mounting Hardware Material
Screw Mounting
Wattage
1875 W
Nema Rating
5-15R
Maximum Horsepower
0.5
Series
Heavy Duty
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Number Of Wires
3-Wire
UPC
783585000000
Style
Finder Groove Face
Type
Standard Duplex
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Amperage
15 A
Connectivity
Back and Side Wired
GFCI
No
UL 94 Flammability Rating
V-0
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Surge Protection
No
NEMA Enclosure Rating
1
Shrouded
No
AFCI
No
Connection Orientation
Straight
Grade
Federal Specification
Polarized
Yes
For Location
Indoor
Includes Mounting Hardware
Yes
Cover Type
No Cover
Horsepower Rating
1/2 hp
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Housing Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Style
Duplex
Base Material
Reinforced PET
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Power Contacts Material
.037" (.9) Phosphor Bronze
Face Style
Finder Groove
Rating
15A, 125V
Horsepower
0.5
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Red, White
Device Color
Gray
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Mounting Strap Material
.050" (1.3) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Grade
Compact Spec Grade
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Shape
Traditional
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
