  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

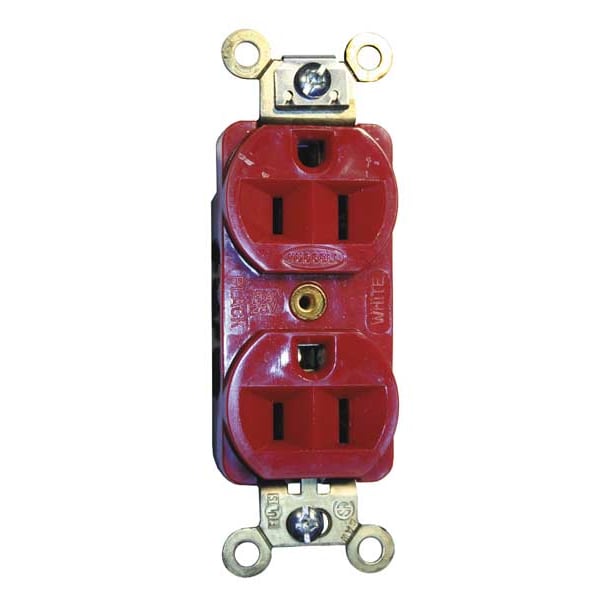

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5252R - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5252R

  • Zoro # G3332987

product price:  $16.85
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5252R
Zoro #
G3332987
UPC #
783585434926
Country of Origin
United States

Dimensions

Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Height
1.05 in
Display Size
Standard Sized Product
Width
1.33 in
Dimensions
3.28 in x 1.33 in x 1.05 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-15
Application Environment
Industrial
Weather Resistant
No
Corrosion Resistant
No
Number of Gangs
1
HP
1/2 hp
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Color
Red
Mounting Type
Flush
Power Indicator
No
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage
125VAC
Sub-Category
Duplex Receptacles
Material
Nylon/Reinforced PET
Connectivity
Back and Side Wired
UPC
783585000000
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Application
Extra Heavy Duty Compact
Nema Rating
5-15R
Dielectric Strength
Withstands 2,000V minimum
Mounting Hardware Material
Screw Mounting
Weight
0.25 lb
Type
Standard Duplex
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Wattage
1875 W
Style
Finder Groove Face
Maximum Horsepower
0.5
Series
Heavy Duty
Carton Quantity
10
Amperage
15 A
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Surge Protection
No
Horsepower Rating
1/2 hp
Shrouded
No
Connection Orientation
Straight
Cover Type
No Cover
AFCI
No
Includes Mounting Hardware
Yes
For Location
Indoor
GFCI
No
Market
Industrial
Grade
Federal Specification
Housing Material
Nylon
Polarized
Yes
Contact Material
Brass
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
Horsepower
0.5
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., UL 94 V-0
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Red, White
Receptacle Grade
Compact Spec Grade
Receptacle Style
Duplex
Standard
NEMA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Reinforced PET
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Device Color
Red
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.037" (.9) Phosphor Bronze
Mounting Strap Material
.050" (1.3) Brass
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Face Style
Finder Groove
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
15A, 125V
Top Material
Nylon
Face Shape
Traditional
Mounting Screw Material
Steel-Zinc Plated
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
