  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

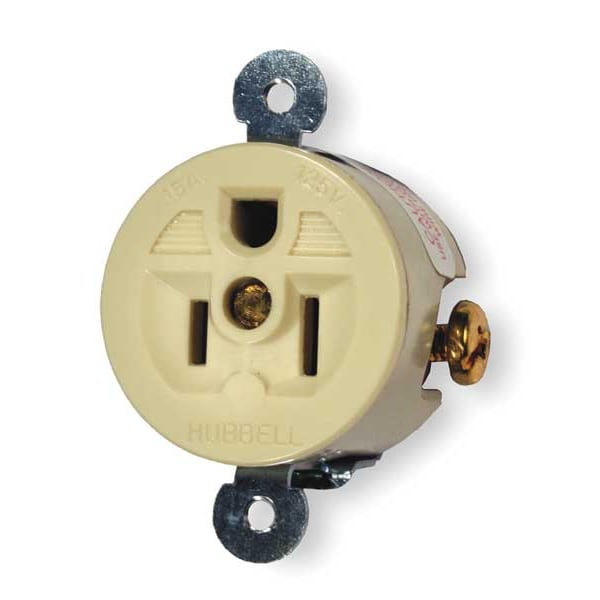

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5258I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5258I

  • Zoro # G3313256

product price: $16.45
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5258I
Zoro #
G3313256
UPC #
783585014623
Country of Origin
United States

Dimensions

Width
1.38 in
Height
1.12 in
Mount Hole Center-to-Center Height
3.3 in
Face Diameter
1.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Panel Mounting Dimension
Panel Mount 1.75" ctrs.
Wire Size
#14 AWG to #10 AWG
Dimensions
1.75 in x 1.38 in x 1.12 in
Display Size
Standard Sized Product
Length
1.75 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Harsh and Heavy Use Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Voltage
125VAC
Mounting Type - Plugs and Receptacles
Panel
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Mounting Type
Panel
Weather Resistant
No
Sub-Category
Single Receptacles
HP
1/2 hp
Material
Nylon/Melamine
Number of Gangs
1
NEMA Configuration
5-15
Wiring Method
Side
Surge Suppression
No
Outlet Type
Single
Type
Single
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Includes
Grounding Clip, Mounting Hardware
Grade
Federal Specification
Housing Material
PBT
Horsepower Rating
1/2 hp
Cover Type
No Cover
Surge Protection
No
AFCI
No
Polarized
Yes
Shrouded
No
UL 94 Flammability Rating
V-0
Market
Industrial
Connection Orientation
Straight
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
GFCI
No
Flammability
UL 94 V-0, UL 94 V2.
Face Style
Finder Groove
Dielectric Voltage
Withstands 2,000V minimum
Rating
15A, 125V
Mounting Strap Material
.050" (1.3) Brass
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Grade
Heavy Duty Spec Grade
Horsepower
0.5
Top Material
Nylon
Receptacle Style
Single
Certification
UL Listed File E2186, Guide Fed. Spec. WC 596F, Listed to UL Standard 498. Certified to CSA 22.2, No. 42 where applicable.
Face Shape
Traditional
Mounting Screw Material
Steel-Zinc Plated
Base Material
Melamine
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Power Contacts Material
.032" (.8) Brass
Standard
NEMA
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3-Wire Grounding
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Ivory
Device Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-15R
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Heavy Duty
Series
Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Finder Groove Face
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed, File E2186

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL E2186, Voltage Rating 125V AC
