  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

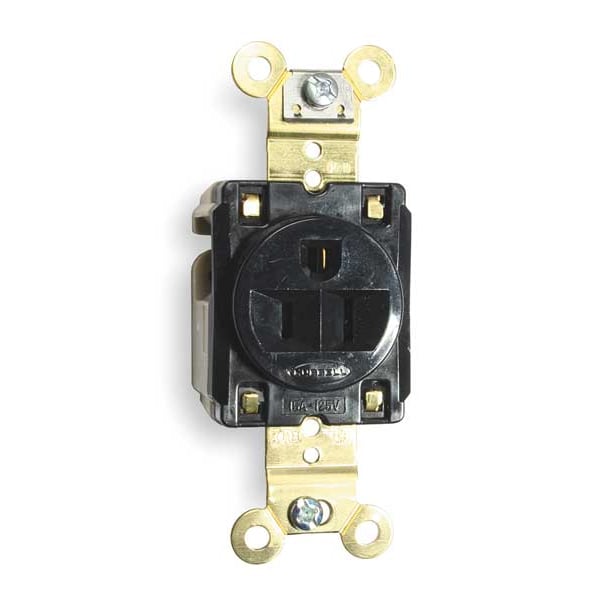

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5261BK - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5261BK

  • Zoro # G1167065

product price: $27.69
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5261BK
Zoro #
G1167065
UPC #
783585014944
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Face Plate Height
1.9 in
Dimensions
3.28 in x 1.63 in x 1.19 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Sub-Category
Single Receptacles
HP
1/2 hp
Weather Resistant
No
Outlet Type
Single
Voltage
125VAC
Tamper Resistant
No
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Application Environment
Harsh and Heavy Use Industrial
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type - Plugs and Receptacles
Single
Material
Nylon/Reinforced PET
Type
Single
Connection Orientation
Straight
Market
Industrial
Grade
Federal Specification
Cover Type
No Cover
Housing Material
Nylon (Face)
Horsepower Rating
1/2 hp
Surge Protection
No
UL 94 Flammability Rating
V-0, V-2
Includes Mounting Hardware
Yes
Contact Material
Nickel-Plated Brass
Polarized
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Shrouded
No
NEMA Enclosure Rating
1
AFCI
No
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Maximum Operating Temperature
167 Degrees F
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Power Contacts Material
.032" (.81) Brass
Horsepower
0.5
Mounting Strap Material
.050" (1.3) Brass
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Receptacle Style
Single
Face Shape
Traditional
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Other Available Colors
Brown, Ivory, Black
Poles and Wires
2 Pole, 3-Wire Grounding
Rating
15A, 125V
Base Material
Reinforced PET
Face Style
Finder Groove
Receptacle Grade
Extra Heavy Duty Spec Grade
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Current Interrupting
Certified for current interrupting at full rated current
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Top Material
Nylon
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Device Color
Black
Auto Ground Clip Material
Stainless Steel
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Screw Material
Steel-Zinc Plated
Material - Mounting Hardware
Screw Mounting
Wattage
1875 W
Series
Extra Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
0.5
Application
Extra Heavy Duty Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-15R
Style
Finder Groove Face
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• One-piece brass integral ground strap
• Unique bypass contact design
