  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

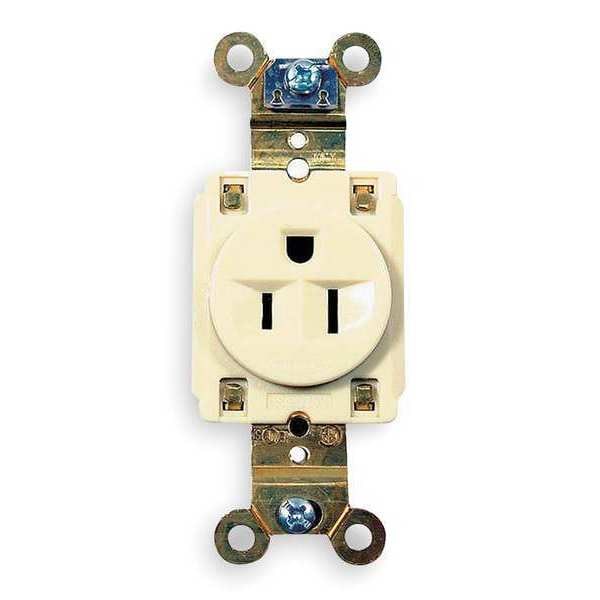

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5261I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5261I

  • Zoro # G1698882

product price:  $27.69
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5261I
Zoro #
G1698882
UPC #
783585014166
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Overall Depth
1.2 in
Face Plate Height
1.9 in
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.63 in x 1.19 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
No
Voltage
125VAC
HP
1/2 hp
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Corrosion Resistant
No
Material
Nylon
Weather Resistant
No
Sub-Category
Single Receptacles
Application Environment
Harsh and Heavy Use Industrial
Outlet Type - Plugs and Receptacles
Single
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Outlet Type
Single
Mounting Type
Flush
Type
Single
UL 94 Flammability Rating
V-0, V-2
Cover Type
No Cover
GFCI
No
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Contact Material
Nickel-Plated Brass
Housing Material
Nylon
Includes Mounting Hardware
Yes
Horsepower Rating
1/2 hp
Connection Orientation
Straight
Surge Protection
No
AFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Industrial
For Location
Indoor
Polarized
Yes
Base Material
Reinforced PET
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Terminal Identification
Terminals identified in accordance with UL498 (Brass, White, Green).
Mounting Screw Material
Steel-Zinc Plated
Face Style
Finder Groove
Top Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current.
Auto Ground Clip Material
Stainless Steel
Flammability
UL 94 V2 or better
Receptacle Grade
Extra Heavy Duty Spec Grade
Operating Temperatures
Maximum continuous 75°C, minimum -40°C (w/o impact).
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Horsepower
0.5
Other Available Colors
Brown, Ivory, Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Strap Material
.050" (1.3) Brass
Rating
15A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Dielectric Voltage
Withstands 2,000V minimum.
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only.
Standard
NEMA
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Receptacle Style
Single
Face Shape
Traditional
Power Contacts Material
.032" (.81) Brass
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Extra Heavy Duty Specification Grade
Style
Finder Groove Face
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Wattage
1875 W
Nema Rating
5-15R
Series
Extra Heavy Duty
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• One-piece brass integral ground strap
• Unique bypass contact design
