  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

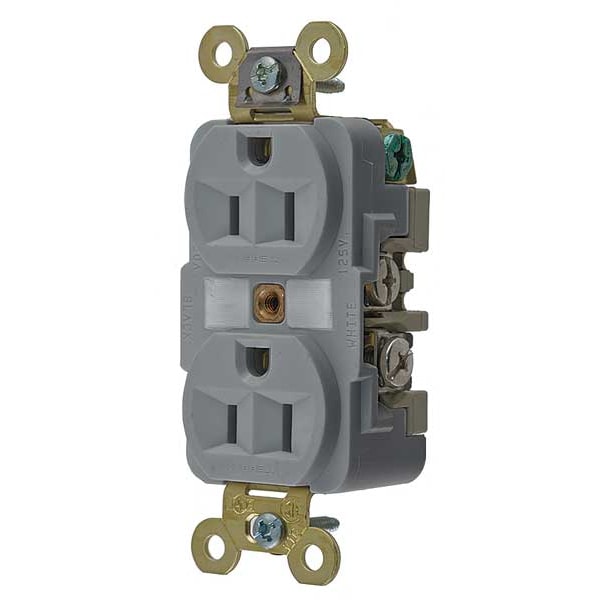

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5262GY - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5262GY

  • Zoro # G2356706

product price:  $26.80
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5262GY
Zoro #
G2356706
UPC #
783585435145
Country of Origin
United States

Dimensions

Height
1.19 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Width
1.65 in
Length
3.28 in
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Face Plate Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, Fed. Spec. W-C-596, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Weather Resistant
No
Application Environment
Harsh and Heavy Use Industrial
Voltage
125VAC
Mounting Type
Flush
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Number of Gangs
1
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-15
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Surge Suppression
No
HP
1/2 hp
Number Of Wires
3-Wire
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Mounting Hardware Material
Screw Mounting
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Weight
0.25 lb
Style
Finder Groove Face
Application
Extra Heavy Duty Specification Grade
UPC
783585000000
Maximum Horsepower
0.5
Amperage
15 A
Nema Rating
5-15R
Series
Extra Heavy Duty
Type
Standard Duplex
Connectivity
Back and Side Wired
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Housing Material
Nylon (Face)
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Grade
Federal Specification
Contact Material
Nickel-Plated Brass
AFCI
No
NEMA Enclosure Rating
1
Surge Protection
No
Shrouded
No
For Location
Indoor
Connection Orientation
Straight
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-0, V-2
Includes Mounting Hardware
Yes
Cover Type
No Cover
GFCI
No
Polarized
Yes
Base Material
Reinforced PET
Device Color
Gray
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Standard
NEMA
Top Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Face Shape
Traditional
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Receptacle Grade
Extra Heavy Duty Spec Grade
Ground Screw Material
#10-32 Silicon Bronze (Green)
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Power Contacts Material
.037" (.9) Brass
Dielectric Voltage
Withstands 2,000V minimum
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Style
Duplex
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Current Interrupting
Certified for current interrupting at full rated current
Mounting Strap Material
.050" (1.3) Brass
Face Style
Finder Groove
Poles and Wires
2 Pole, 3-Wire Grounding
Horsepower
0.5
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
15A, 125V
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• Back wired ground terminal allows faster, easier installation
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
