  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

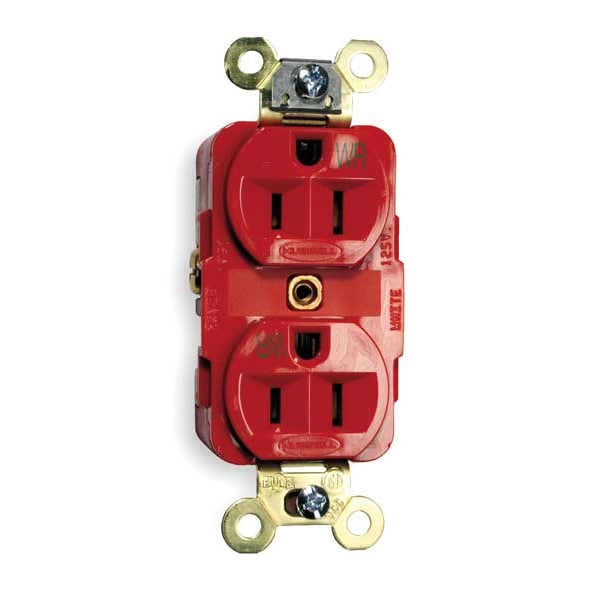

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5262RWR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5262RWR

  • Zoro # G1506696

product price:  $29.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5262RWR
Zoro #
G1506696
UPC #
783585320526
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Length
3.28 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Width
1.65 in
Height
1.19 in
Minimum Wire Size
14 AWG
Face Plate Width
1.7 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
Tamper Resistant
No
Material
Nylon/Reinforced PET
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-15
Weather Resistant - Plugs and Receptacles
Yes
Mounting Type
Flush
Surge Suppression
No
Sub-Category
Duplex Receptacles
Weather Resistant
Yes
Number of Gangs
1
Color
Red
Application Environment
Harsh and Heavy Use Industrial
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Power Indicator
No
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
UPC
783585000000
Connectivity
Back and Side Wired
Carton Quantity
10
Nema Rating
5-15R
Type
Weather Resistant
Amperage
15 A
Wattage
1875 W
Mounting Hardware Material
Screw Mounting
Application
Extra Heavy Duty Specification Grade
Series
Extra Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Finder Groove Face
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
Environmental Rating
Weather Resistant
Maximum Horsepower
0.5
Weight
0.25 lb
Brand
Hubbell Wiring Device-Kellems
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon, Reinforced PET
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Cover Type
No Cover
Grade
Federal Specification
Contact Material
Nickel-Plated Brass
Horsepower Rating
1/2 hp
Shrouded
No
UL 94 Flammability Rating
V-0, V-2
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Includes Mounting Hardware
Yes
AFCI
No
Connection Orientation
Straight
Polarized
Yes
NEMA Enclosure Rating
1
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Finder Groove
Dielectric Voltage
Withstands 2,000V minimum
Auto Ground Clip Material
Stainless Steel
Mounting Strap Material
.050" (1.3) Brass
Top Material
Nylon
Base Material
Reinforced PET
Power Contacts Material
.037" (.9) Brass
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Rating
15A, 125V
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Mounting Screw Material
Steel-Zinc Plated
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Horsepower
0.5
Standard
NEMA
Face Shape
Traditional
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Ground Screw Material
#10-32 Silicon Bronze (Green)
Poles and Wires
2 Pole, 3-Wire Grounding
Receptacle Style
Duplex
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Device Color
Red
Current Interrupting
Certified for current interrupting at full rated current
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Weather Resistant
Horsepower - Maximum
0.5
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• Weather-resistance complies with national electrical code requirements
• Finder Groove Face
• One-piece brass integral ground strap
• Deep body design with circuit ID face
