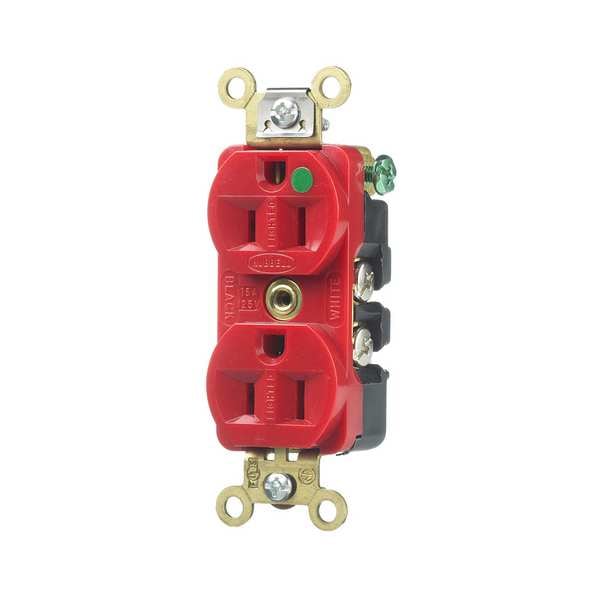

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Mfr # HBL8200ILR
Zoro # G1516776

51.59

Key Features

Receptacle Type

Duplex

NEMA Receptacle Configuration

5-15R

Current Rating

15 A

Voltage Rating

125V AC

Phase

Single

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBL8200ILR
Zoro #: G1516776
UPC #: 783585016467
Country of Origin: United States

Dimensions

Length: 3.28 in
Height: 1.05 in
Width: 1.33 in
Display Size: Standard Sized Product
Dimensions: 3.28 in x 1.33 in x 1.05 in
Wire Size: #14 AWG to #10 AWG
Minimum Wire Size: 14 AWG
Face Plate Width: 1.6 in
Face Plate Height: 2.7 in
Overall Depth: 1.1 in
Maximum Wire Size: 10 AWG
Mount Hole Center-to-Center Height: 3.3 in

Details

Item: Straight Blade Receptacle
Receptacle Type: Duplex
NEMA Receptacle Configuration: 5-15R
Current Rating: 15 A
Voltage Rating: 125V AC
Phase: Single
Number of Poles: 2
Number of Wires: 3
Wire Connection Type: Screw Terminals
Wiring Method: Back, Side
Grounding: Grounded
Housing Color: Red
Mount Type: Flush
IP Rating: IP20
Standards: CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties: Impact Resistant
Flange Type: Non-Flanged
Wiring Method - Plugs and Receptacles: Back and Side
HP: 1/2 hp
Weather Resistant: No
NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R
Corrosion Resistant: No
Number of Gangs: 1
Color: Red
Outlet Type - Plugs and Receptacles: Standard Duplex
Voltage: 125VAC
Weather Resistant - Plugs and Receptacles: No
Material: Polycarbonate
Surge Suppression: No
Special Features: Illuminated
Outlet Type: Duplex
Mounting Type: Flush
Tamper Resistant: No
Application Environment: Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles: Flush
NEMA Configuration: 5-15
Sub-Category: Duplex Receptacles
Type: Receptacle
Amperage: 15 A
UPC: 783585000000
Maximum Horsepower: 0.5
Carton Quantity: 10
Weight: 0.2 lb
Nema Rating: 5-15R
Number Of Wires: 3-Wire
Environmental Rating: Indoor Dry Unless Protected By Additional Means
Connectivity: Back and Side Wired Screw Terminals
Style: Finder Groove Face
Dielectric Strength: Withstands 2,000V minimum
Application: Extra Heavy Duty Hospital Grade
Mounting Hardware Material: Screw Mounting
Brand: Hubbell Wiring Device-Kellems
Wattage: 1875 W
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Series: Hospital Grade
Grade: Hospital Grade Fed. Spec.
Includes: Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location: Indoor
GFCI: No
Surge Protection: No
Includes Mounting Hardware: Yes
Shrouded: No
AFCI: No
Maximum Operating Temperature: 167 Degrees F
Housing Material: Polycarbonate
NEMA Enclosure Rating: 1
Minimum Operating Temperature: -40 Degrees F
UL 94 Flammability Rating: V-0
Horsepower Rating: 1/2 hp
Connection Orientation: Straight
Polarized: Yes
Cover Type: No Cover
Contact Material: Nickel-Plated Brass
Dielectric Voltage: Withstands 2,000V minimum
Current Interrupting: Certified for current interrupting at full rated current
Device Color: Red
Terminal Identification: Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
Device Grade: Heavy Duty Spec Grade
Poles and Wires: 2 Pole, 3 Wire
Flammability: UL 94V-2
Operating Temperatures: Maximum continuous 75°C; minimum -40°C (w/o impact)

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts
• Entire face illuminated by two LEDs
