  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

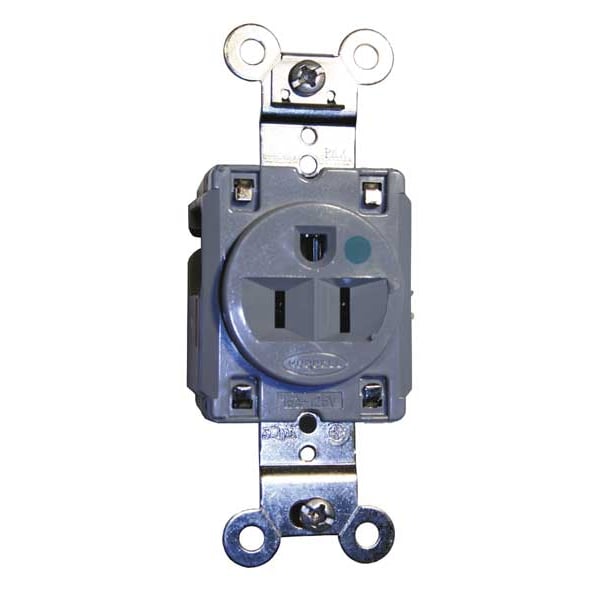

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8210GY - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8210GY

  • Zoro # G1821407

product price:  $30.19
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8210GY
Zoro #
G1821407
UPC #
783585016221
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Face Plate Height
1.9 in
Dimensions
3.28 in x 1.63 in x 1.19 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Wiring Method
Back, Side
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Heavy Use Hospital Grade
Voltage
125VAC
Outlet Type
Single
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Single
HP
1/2 hp
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Power Indicator
No
Material
Impact Modified PBT/Reinforced PET
Corrosion Resistant
No
Type
Single
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
GFCI
No
Housing Material
Nylon
UL 94 Flammability Rating
5VA, V-0, V-2
AFCI
No
Polarized
Yes
Contact Material
Brass
Connection Orientation
Straight
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Cover Type
No Cover
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Surge Protection
No
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Device Color
Gray
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3 Wire
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Application
Extra Heavy Duty Hospital Grade
Nema Rating
5-15R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
1875 W
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Style
Finder Groove Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Series
Hospital Grade
Material - Mounting Hardware
Screw Mounting

Description

The HUBBELL Hospital Grade Single Receptacle is a 15A, 125V AC flush mount outlet suitable for installation in hospital and healthcare environments. This single NEMA 5-15R receptacle features a grounded design with both back and side wired screw terminals, supporting #14 to #10 AWG copper conductors. The device incorporates an impact-resistant nylon housing and complies with UL requirements for hospital grade devices.


Key Features of the HUBBELL Hospital Grade Single Receptacle:

  • Amperage/Voltage: Rated for 15A at 125V AC

  • NEMA Configuration: Single outlet, NEMA 5-15R

  • Mounting Type: Flush mount with included mounting hardware

  • Wiring Method: Back and side wired screw terminals accommodate #14–#10 AWG copper wire

  • Contact Material: Brass contacts with nickel-plated bypass contact design

  • Grounding System: Four-point grounding system

  • Material Construction: Impact modified PBT/reinforced PET body; nylon faceplate

  • Dielectric Strength & Flammability Ratings: Dielectric strength: minimum 2,000V; Flammability ratings: faceplate UL94V-2; base UL94V-0 and UL94-5VA

Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation
- Certifications & Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
