  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

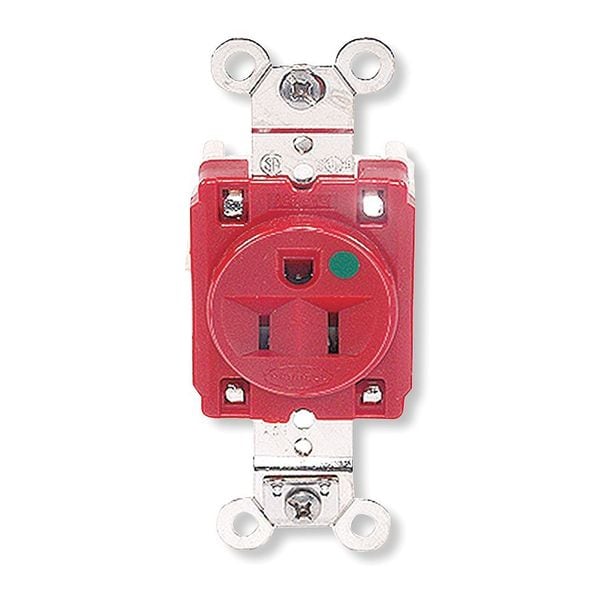

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8210R - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8210R

  • Zoro # G3487154

product price:  $30.19
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8210R
Zoro #
G3487154
UPC #
783585016245
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Maximum Wire Size
10 AWG
Face Plate Height
1.9 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.63 in x 1.19 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Number of Gangs
1
HP
1/2 hp
Corrosion Resistant
No
Mounting Type
Flush
NEMA Configuration
5-15
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant
No
Outlet Type
Single
Material
Nylon/Reinforced Thermoplastic Polyester
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Single Receptacles
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Surge Suppression
No
Power Indicator
No
Type
Single
Contact Material
Brass
Horsepower Rating
1/2 hp
Cover Type
No Cover
UL 94 Flammability Rating
5VA, V-0, V-2
Surge Protection
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
NEMA Enclosure Rating
1
Shrouded
No
AFCI
No
Includes Mounting Hardware
Yes
GFCI
No
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Poles and Wires
2 Pole, 3 Wire
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Red
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Current Interrupting
Certified for current interrupting at full rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-15R
Wattage
1875 W
Style
Finder Groove Face
Application
Extra Heavy Duty Hospital Grade
Series
Hospital Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

The HUBBELL Hospital Grade Single Receptacle is a 15A, 125V AC flush mount outlet suitable for use in high-traffic or commercial settings. This single NEMA 5-15R receptacle features a one-piece nickel-plated brass integral ground strap and features a patented bypass contact design to increase contact pressure and reduce operating temperature. It is rated for hospital grade applications, meets applicable UL requirements (UL498 File E2186).


Key Features of the HUBBELL Hospital Grade Single Receptacle:

  • Amperage/Voltage: Rated for 15A at 125V AC

  • NEMA Configuration: Single outlet, NEMA 5-15R

  • Mounting Type: Flush mount with included grounding clip and mounting hardware

  • Wiring Method: Back and side wired screw terminals; accommodates #14–#10 AWG copper conductors

  • Contact Material: Brass contacts with exclusive nickel-plated bypass design

  • Grounding System: Four-point grounding provides redundant low-resistance continuity

  • Material Construction: Nylon/reinforced thermoplastic polyester housing; impact-resistant deep face design

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186

  • Dielectric Strength & Flammability Ratings: Withstands minimum 2,000V; Top flammability rating UL94V-2/Base UL94V-0 & UL94-5VA
