  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

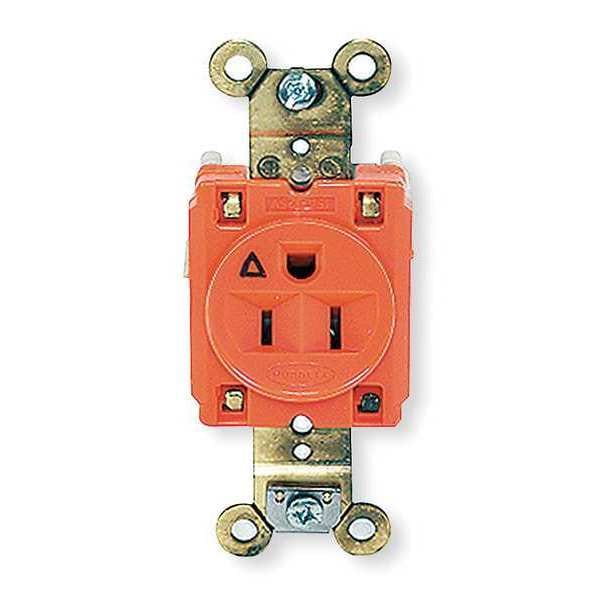

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG5261 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG5261

  • Zoro # G2417064

product price:  $40.50
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG5261
Zoro #
G2417064
UPC #
783585756493
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
1.9 in
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Length
3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.63 in x 1.19 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Power Indicator
No
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Weather Resistant
No
Application Environment
Industrial
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Surge Suppression
No
Mounting Type
Flush
Number of Gangs
1
Material
Nylon/Reinforced PET
Outlet Type
Single
Special Features
Isolated Ground
Sub-Category
Single Receptacles
Type
Single
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Cover Type
No Cover
Grade
Federal Specification
UL 94 Flammability Rating
V-0, V-2
AFCI
No
GFCI
No
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Contact Material
Nickel-Plated Brass
Horsepower Rating
1/2 hp
Polarized
Yes
Includes Mounting Hardware
Yes
Surge Protection
No
Market
Commercial, Industrial
Shrouded
No
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Base Material
Reinforced PET
Face Style
Finder Groove
Horsepower
0.5
Auto Ground Clip Material
Stainless Steel
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better.
Mounting Screw Material
Steel-Zinc Plated
Enhancement
Isolated Ground
Top Material
Nylon
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Grade
Heavy Duty Spec Grade
Power Contacts Material
.032" (.8) Brass
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Mounting Strap Material
.050" (1.3) Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Style
Single
Device Color
Orange
Face Shape
Traditional
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
15A, 125V
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Extra Heavy Duty Specification Grade
Horsepower - Maximum
0.5
Nema Rating
5-15R
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
1875 W
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Series
Heavy Duty
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting

Description

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
•
