  11. GFCI Rceptcle, Commer., Gr, 20A, 1 HP

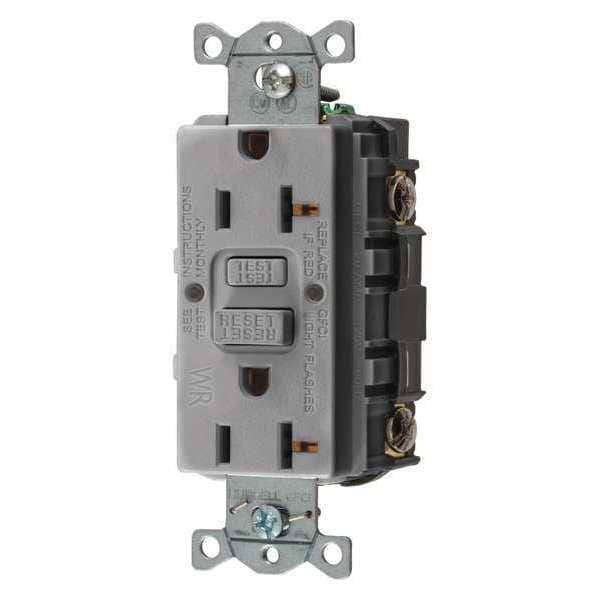

Hubbell Wiring Device-Kellems GFCI Rceptcle, Commer., Gr, 20A, 1 HP GFRWR20GRY - main

GFCI Rceptcle, Commer., Gr, 20A, 1 HP

  • Mfr # GFRWR20GRY

  • Zoro # G4843231

product price: $29.36
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRWR20GRY
Zoro #
G4843231
UPC #
883778124396
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Mounting Type - Plugs and Receptacles
Flush
Voltage - Plugs and Receptacles
125V AC
HP
1 hp
Amps - Plugs and Receptacles
20 A
Voltage
125VAC
Self-Testing
Yes
Special Features
Ground Fault Indicator
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Decorator
NEMA Configuration
5-20
Tamper Resistant
No
Weather Resistant
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method
Back, Side
Color - Plugs and Receptacles
Gray
Weather Resistant - Plugs and Receptacles
Yes
Application Environment
Commercial
Amps - Plugs and Receptacles
20
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Power Indicator
Yes
Amps
20A
Item - Plugs and Receptacles
Receptacle
Reset Type
Automatic
Color
Gray
Surge Suppression
No
Features
Weather Resistant
Resistance Properties
Weather Resistant
Receptacle Type
Duplex
Grade
General Use
Voltage Rating
125V AC
Shrouded
No
Surge Protection
No
AFCI
No
Self Testing
Yes
Mount Type
Flush
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Number of Gangs
1
Flange Type
Non-Flanged
Market
Commercial
Type
Tamper-Resistant, Weather Resistant
Voltage Rating Description
125 V
Current / Amperage Rating
20 A
Nema Rating
5-20R
Industry Standard(s)
Meets All NEC® Requirements
Series
Heavy Duty
Style
Assembled In USA
Amperage Rating
20 A

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
