  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

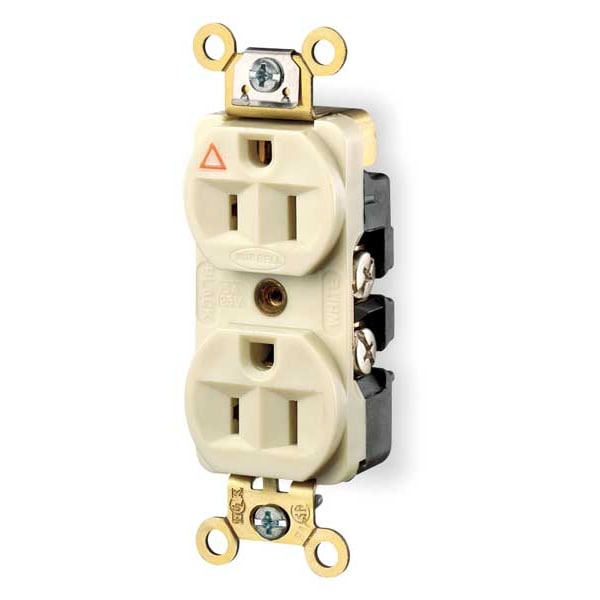

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG5262I - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG5262I

  • Zoro # G2638115

product price:  $35.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IG5262I
Zoro #
G2638115
UPC #
783585756547
Country of Origin
United States

Dimensions

Face Plate Height
2.7 in
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Width
1.33 in
Height
1.05 in
Dimensions
3.28 in x 1.33 in x 1.05 in
Wire Size
#14 AWG to #10 AWG
Length
3.28 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Special Features
Isolated Ground
Weather Resistant - Plugs and Receptacles
No
HP
1/2 hp
Outlet Type
Duplex
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Weather Resistant
No
Application Environment
Industrial
NEMA Configuration
5-15
Material
Nylon
Mounting Type
Flush
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Type
Duplex
Cover Type
No Cover
Surge Protection
No
Housing Material
Nylon
Market
Industrial
NEMA Enclosure Rating
1
Horsepower Rating
1/2 hp
GFCI
No
Includes Mounting Hardware
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Nickel-Plated Brass
AFCI
No
Polarized
Yes
UL 94 Flammability Rating
V-0, V-2
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
For Location
Indoor
Shrouded
No
Horsepower
0.5
Auto Ground Clip Material
Stainless Steel
Face Style
Finder Groove
Enhancement
Isolated Ground
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Rating
15A, 125V
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Style
Duplex
Mounting Screw Material
Steel-Zinc Plated
Mounting Strap Material
.050" (1.3) Brass
Device Color
Ivory
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Standard
NEMA
Face Shape
Traditional
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Base Material
Reinforced PET
Top Material
Nylon
Receptacle Grade
Heavy Duty Spec Grade
Power Contacts Material
.037" (.9) Phosphor Bronze
Other Available Colors
Orange, Gray, Ivory, Red
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Style
Finder Groove Face
Material - Mounting Hardware
Screw Mounting
Series
Heavy Duty
Nema Rating
5-15R
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
0.5
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
1875 W
Dielectric Strength
Withstands 2,000V minimum
Application
Extra Heavy Duty Specification Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
• Triangle marking on face indicates isolated ground
• Slender compact design
• Finder Groove Face
