  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

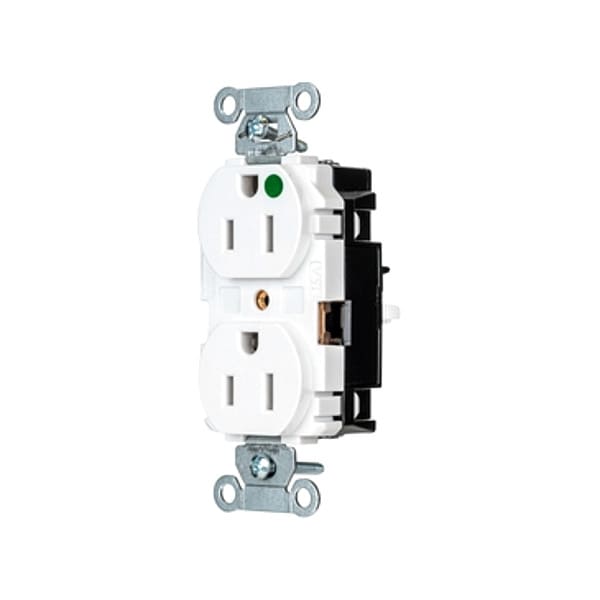

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 8200STW - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 8200STW

  • Zoro # G810105589

product price: $19.44
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200STW
Zoro #
G810105589
UPC #
783585726755
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Overall Depth
1.4 in
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Surface
IP Rating
IP20
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Hardware
Number of Gangs
1
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
For Location
Indoor
Includes Mounting Hardware
Yes
Market
Commercial
Grade
Hospital Grade
Number of Outlets
2
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Housing Material
Thermoplastic
Contact Material
Copper Alloy
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
Shrouded
No
NEMA Enclosure Rating
1
Surge Protection
No
Polarized
Yes
Hub Type
Feed Through
GFCI
No
Cover Type
No Cover
AFCI
No

Description

The HUBBELL Duplex Straight Blade Receptacle is a hospital grade, tamper resistant electrical outlet intended for indoor use in dry locations. It features a screwless EdgeConnectTM termination system with tool-free wire insertion.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Termination System: Screwless EdgeConnectTM with push-in back wiring for faster installation

  • Current/Voltage Rating: Rated for 15 A and 125V AC operation

  • Tamper Resistant: Tamper resistant

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Grounding: Grounded configuration; NEMA 5-15R compliant

  • Grade & Standards: Hospital grade; CSA Certified, UL Listed, NEMA WD-6 compliant

  • Circuit Tab Access: Split circuit tab feature included

  • Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)

  • Mount Type & Hardware: Surface mount; includes mounting hardware
