  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

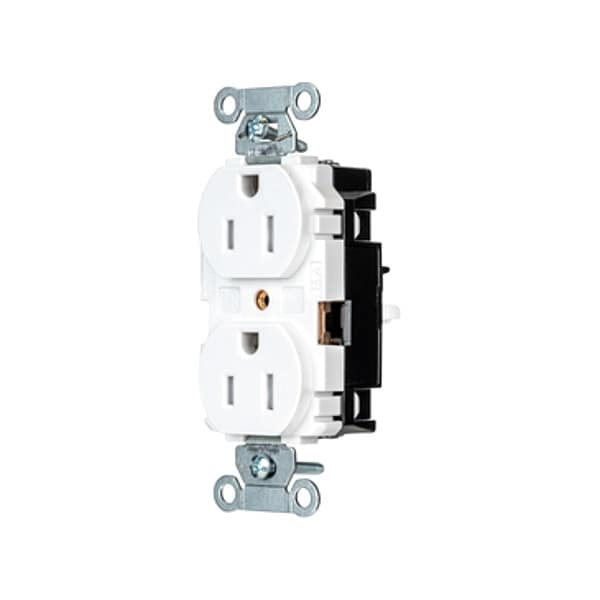

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded BR15STWTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # BR15STWTR

  • Zoro # G210105431

product price: $9.25
/ea
Sold in multiples of 10 for $92.50

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15STWTR
Zoro #
G210105431
UPC #
783585727851
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Market
Commercial
Connection Orientation
Straight
Grade
General Use
Horsepower Rating
1/2 hp
Housing Material
Thermoplastic
Includes Mounting Hardware
Yes
Visual Indicator Lights
Power Connected
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-2
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Contact Material
Copper Alloy
Number of Outlets
2
NEMA Enclosure Rating
1
Cover Type
No Cover
AFCI
No
Shrouded
No
Polarized
Yes
Hub Type
Feed Through
Surge Protection
No
GFCI
No

Description

EdgeConnectTM Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualifi ed installer regardless of level of training can guarantee a high qualilty result. Elapsed time? About 11 seconds!
• Back wired srewless termination for faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Triple and Double Wipe Contacts
• Easy access split circuit tab
