  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

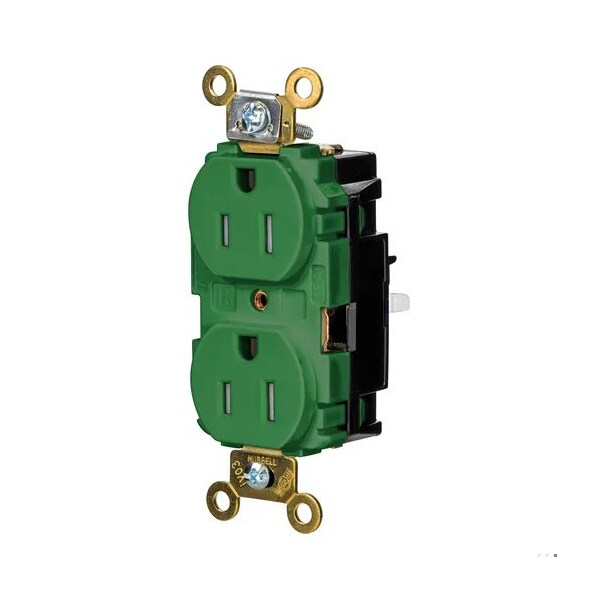

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL5262STGNTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL5262STGNTR

  • Zoro # G310986305

product price:  $29.30
/ea
Sold in multiples of 10 for $293.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5262STGNTR
Zoro #
G310986305
UPC #
783585687605
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Green
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Grade
Federal Specification
For Environment
Dry
Includes Mounting Hardware
Yes
Surge Protection
No
Hub Type
Feed Through
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Horsepower Rating
1/2 hp
Contact Material
Copper Alloy
Market
Industrial
Includes
Mounting Hardware
Minimum Operating Temperature
-40 Degrees F
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Housing Material
Thermoplastic
Number of Gangs
1
AFCI
No
Connection Orientation
Straight
Polarized
Yes
For Location
Indoor
Cover Type
No Cover
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
GFCI
No
Number of Outlets
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Green, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
