Shop HUBBELL WIRING DEVICE-KELLEMS

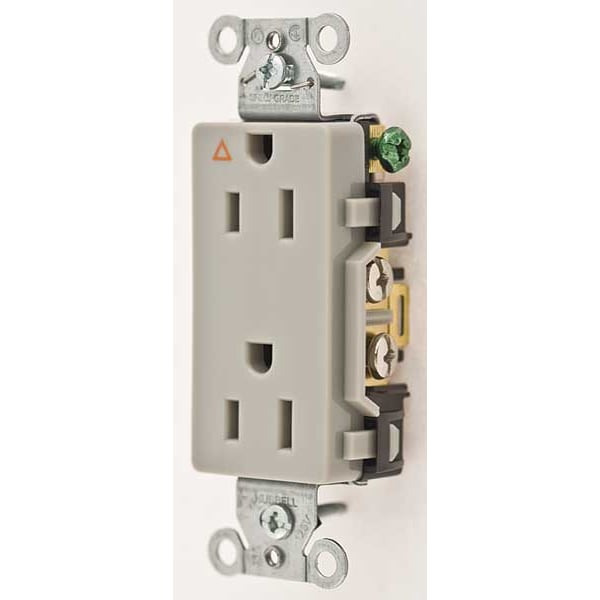

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG15DRGRY
  • Zoro # G2967447
product price:
$
10.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IG15DRGRY
Zoro #
G2967447
UPC #
783585146881
Country of Origin
China

Dimensions

Height
3.28 in
Width
0.83 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Overall Depth
3.3 in
Face Plate Height
2.7 in
Dimensions
1.29 in x 0.83 in x 3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Length
1.29 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-6, UL 498
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Weather Resistant
No
Application Environment
Commercial
HP
1/2 hp
Power Indicator
No
Special Features
Isolated Ground
Voltage
125VAC
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Decorator Duplex
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Decorator
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
NEMA Configuration
5-15
Material
Nylon
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Type
Duplex
Surge Protection
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Grade
Federal Specification
Market
Commercial
Housing Material
Nylon
Horsepower Rating
1/2 hp
Polarized
Yes
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
GFCI
No
NEMA Enclosure Rating
1
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Shrouded
No
For Location
Indoor
Connection Orientation
Straight
Includes Mounting Hardware
Yes
AFCI
No
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screws
Plated steel
Mounting Strap
.040 in. (1) Galvanized steel
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts
.030 in. (.8) Brass
Wire Clamp
.062 in. (1.6) Nickel plated steel
Automatic Self-grounding Staple
Stainless steel
Mounting Screws
Galvanized Steel
Base
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
UL 94 V-2
Ground Contacts
Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face
Nylon
Device Color
Gray
Dielectric Voltage
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
5-15R
Style
Style Line Decorator
Series
Commercial Specification Grade
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Commercial Grade
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
• Triangle marking on face indicates isolated ground
• Aesthetic Style Line® decorator design
• Triple wipe contacts
