  6. Straight Blade Receptacle, 5-15R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

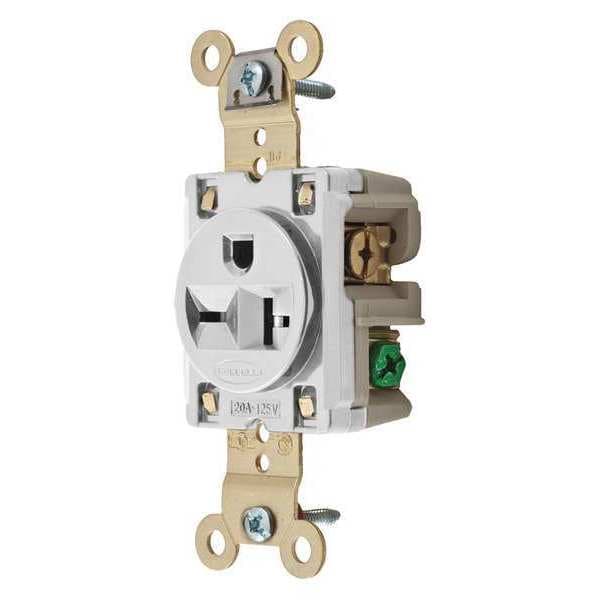

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5461WR - main

Straight Blade Receptacle, 5-15R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5461WR

  • Zoro # G4572027

product price:  $36.35
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5461WR
Zoro #
G4572027
UPC #
00783585542577
Country of Origin
United States

Dimensions

Overall Depth
1.2 in
Face Plate Height
1.9 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-599, NEMA WD-6, UL 498 File E2186
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
6-20R
NEMA Rating
1
Surge Suppression
No
Power Indicator
No
Voltage
250VAC
Tamper Resistant
No
Outlet Type
Single
Outlet Type - Plugs and Receptacles
Single
Weather Resistant
No
Sub-Category
Single Receptacles
Material
Nylon
Mounting Type
Flush
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
Yes
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Application Environment
Harsh and Heavy Use Industrial
Surge Protection
No
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
Polarized
Yes
AFCI
No
Horsepower Rating
1/2 hp
GFCI
No
Shrouded
No
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-0, V-2
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Connection Orientation
Straight
Contact Material
Nickel-Plated Brass
Market
Industrial

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Weather Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-599, NEMA WD-6, UL 498 File E2186
