  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

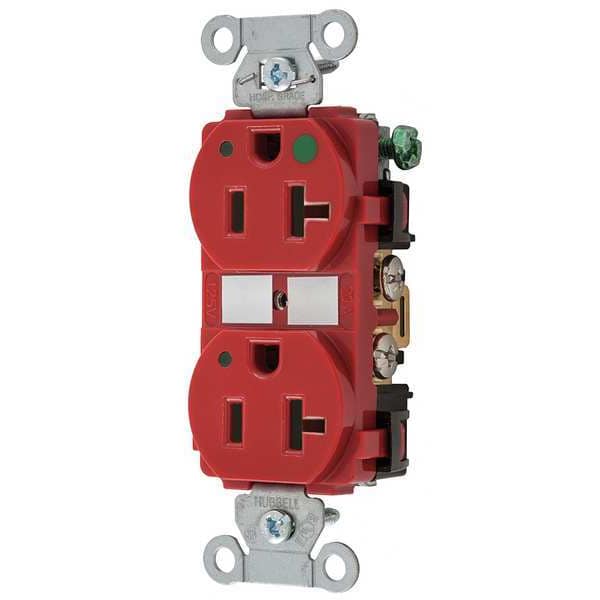

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300REDL - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300REDL

  • Zoro # G6170306

product price:  $30.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8300REDL
Zoro #
G6170306
UPC #
783585196961
Country of Origin
Mexico

Dimensions

Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.57 in x 1.15 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Face Plate Height
2.7 in
Height
1.15 in
Length
3.28 in
Width
1.57 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Tamper Resistant
No
Surge Suppression
No
Power Indicator
Yes
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Weather Resistant
No
Application Environment
Hospital Grade
Color
Red
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Outlet Type
Duplex
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Number Of Wires
3-Wire
Maximum Horsepower
1
Dielectric Strength
Withstands 2,000V minimum
Carton Quantity
10
Type
Receptacle
Connectivity
Back and Side Wired
Indicator Type
Green LED
Wattage
2500 W
Style
Smooth Face
Amperage
20 A
Application
Hubbell-Pro Heavy Duty Hospital Grade
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-20R
Series
Hubbell-Pro
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Screw Mounting
Polarized
Yes
Housing Material
Nylon
Contact Material
Brass
GFCI
No
Shrouded
No
Includes
Mounting Hardware, Wall Plate or Weatherproof Cover
Cover Type
No Cover
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
For Location
Indoor
Connection Orientation
Straight
Horsepower Rating
1 hp
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Visual Indicator Lights
Power Connected
Grade
Hospital Grade Fed. Spec.
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Power Contacts
Brass
Base
PBT
Device Color
Red
Clamping Plate
Plated steel
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Face
Nylon
Flammability
UL 94V-2
Mounting Strap
Galvalized steel
Ground Contacts
Brass
Mounting Screws
Zinc plated steel
Automatic Self-grounding Staple
Stainless steel
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Indicator(s) Type
Green LED
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

• Green LED Power Indicators to identify emergency circuits
• Triple wipe contacts
• High impact resistant face with circuit I.D. marking area
• Steel mounting strap
